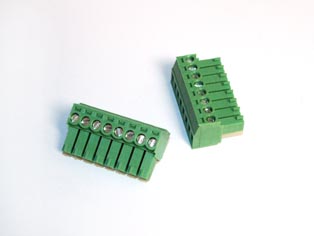

Pluggable Terminal Block Screw & Clamp Type – RPGQ-3.81

Pluggable Terminal Block Screw & Clamp Type – RPGQ-3.81

SKU: RPGQ-3.81 Categories: , Tags: ,

Pluggable Terminal Block Screw & Clamp Type Single Row 3.81mm – Pluggable Terminal Block Screw & Clamp Type

Application & Features

Solar Power
Power Converters, Interface Modules and Devices
Industrial Controller Boards
HVAC equipment and controls
Automation Systems
Security

Specifications

Safety Approval: cRUus, VDE
Flame Rating: UL 94V-0
Current Rating: 10 Amps (cRUus), 10.5 Amps (VDE)
Voltage Rating: 300V AC
Withstanding Voltage: 1.6KV (cRUus), 2.5KV (VDE)
Operating Temperature: -40° ~ +115° C
Contact Material: PhBz, Tin Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Range: 1.5mm²
Wire Strip Length: 6-7mm
Wire Size Accepted: 16-28 AWG
Torque: 3.0Lb-In/0.2Nm, M2
Clamp: Brass (CuZn) Ni Plated
Flange Screw: Brass, M2.5

Options

Green Options: Pb<40000ppm
Mounting Type: Pluggable
Body Type: With or Without Flange
Flange Screw: Steel M2.5 Zinc Plating “+/-” Slot Type
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D)
CP: Custom Printing

Matings

RPLJ-3.81

Technical Sheets

Download Without Flange PDF
Download With Flange PDF
Download Without Flange CAD
Download With Flange CAD
