Solid connector solutions for the ever-changing electronic Industry.
- TBBK

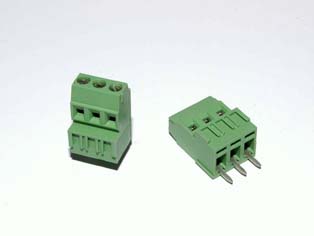

TBBK

– TBBK

SKU: TBBK Categories: , Tag:

3.81mm –

Specifications

Flame Rating: UL 94V-0
Safety Approval: cRUus
Voltage Rating: 300V AC
Current Rating: 10 Amps
Wire Size Accepted: 16-24 AWG
Wire Strip Length : 5-6mm
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Clamp: Brass (CuZn) Ni Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Solder Pin: Brass with Tin Plating
Insulator Material: High Temperature Thermoplastic
Torque: 1.7 in-lb/M2Green Options: Pb<40000ppm
Color: Black (RAL9005), Green (RAL6018/T), Blue (RAL5015/A)
Color: Grey (RAL7035/D)
Mount Type: Straight

Technical Sheets

Download PDF
Download CAD
