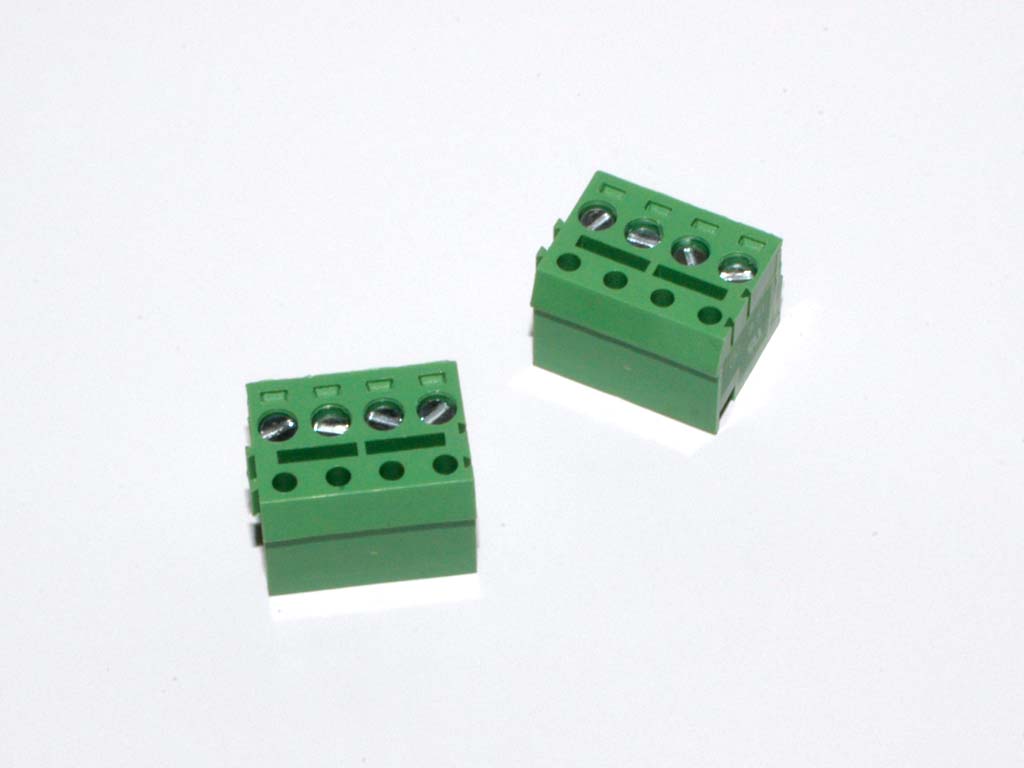

Pluggable Terminal Block Dovetailed – RPGS-3.81

Pluggable Terminal Block Dovetailed – RPGS-3.81

SKU: RPGS-3.81 Categories: , Tags: ,

Pluggable Terminal Block Dovetailed Single Row 3.81mm – Pluggable Terminal Block Dovetailed

Application & Features

Embedded control units
High Profile
Public Traffic Lights and Safety
Multiple Height Options
High Mating Cycles
Ideal for Board Stacking applications


Safety Approval: cRUus
Flame Rating: UL 94V-0
Voltage Rating: 300V AC
Current Rating: 10 Amps
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Contact Material: PhBz, Tin Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Strip Length : 5-6mm
Wire Size Accepted: 16-28 AWG
Torque: 1.7Lb-In/0.2Nm, M2
Clamp: Brass (CuZn) Ni Plated


Green Options: Pb<40000ppm
Mounting Type: Pluggable
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D)



Technical Sheets

Download PDF
Download CAD
