Solid connector solutions for the ever-changing electronic Industry.

Pluggable Terminal Block Header – RPEV-3.81

Pluggable Terminal Block Header – RPEV-3.81

SKU: RPEV-3.81 Categories: , Tags: ,

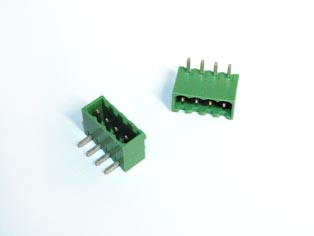

Pluggable Terminal Block Header Single Row 3.81mm – Pluggable Terminal Block Header

Application & Features

Appliances
Electrical Outlets and Switches to Main
Ground Connections
Security
Lighting
Power Converters, Interface Modules and Devices

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Current Rating: 8 Amps
Voltage Rating: 300V
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 260℃ ±5℃ /5Sec
Contact Material: Copper with Tin Plating
Insulator Material: Thermoplastic

Options

Green Options: RoHS (lead<4%) in Copper Alloy
Mounting Type: Pluggable
Mount Type: Straight or Right Angle
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), White (RAL1102), Green (RAL6018/U)

Matings

RPEW-3.81

Technical Sheets

Download Without Flange PDF
Download With Flange PDF
Download Without Flange PDF
Download With Flange PDF
Download Without Flange CAD
Download With Flange CAD
Download Without Flange CAD
Download With Flange CAD
