Solid connector solutions for the ever-changing electronic Industry.

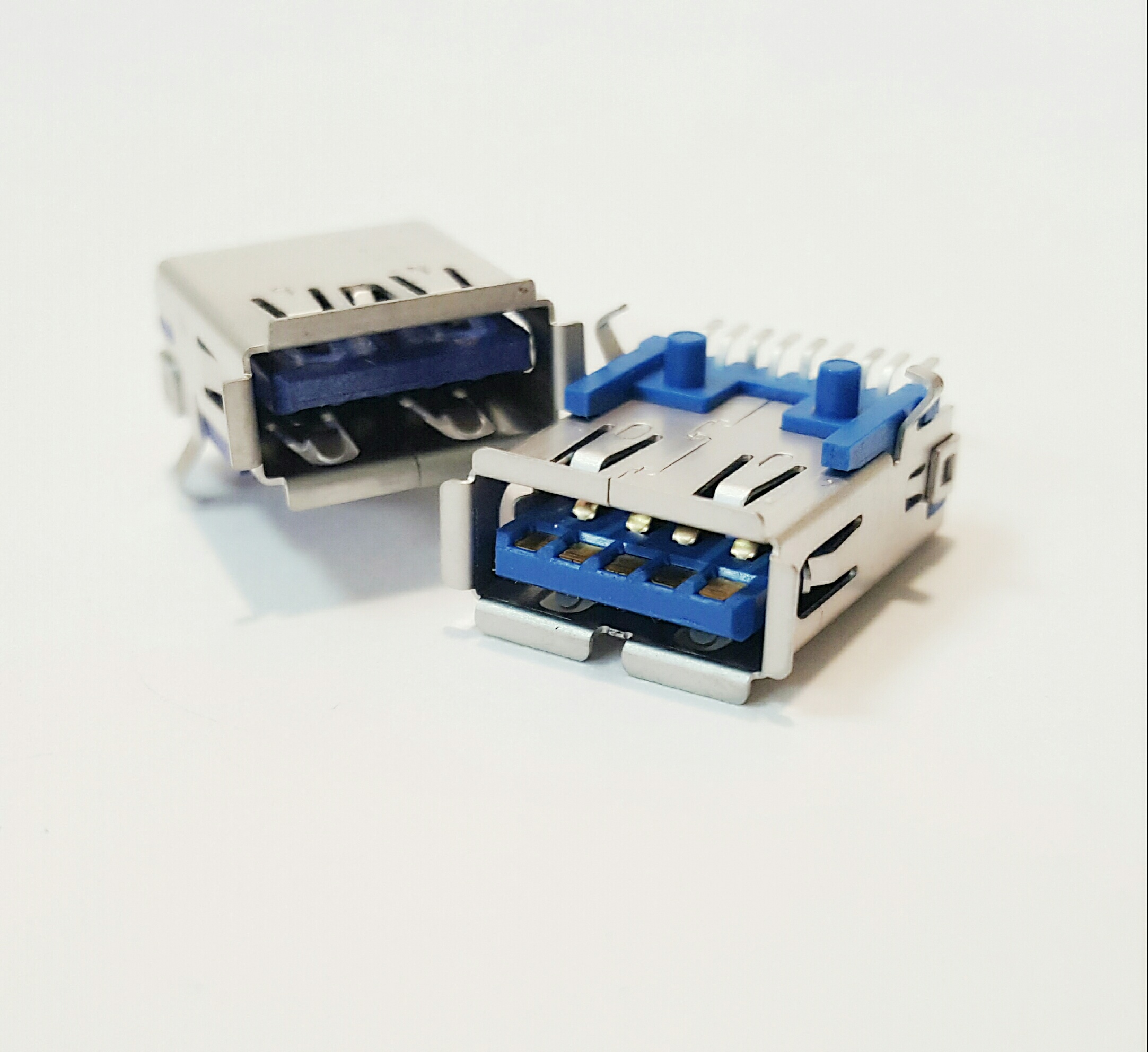

USB Type A 3.0 SMT – SBPA

USB Type A 3.0 SMT – SBPA

SKU: SBPA Categories: , Tag:

USB Type A 3.0 SMT Single Row – USB Type A 3.0 SMT

Application & Features

USB 3.0 R/W 5Gbps (10x faster than USB 2.0)
USB 3.1 SuperSpeed bandwidth of 20Gbps
Gaming Systems
Home Automation
Mobile Devices
Networking and Computer Cables


Flame Rating: UL 94HB
Current Rating: 1.8A to VBUS and GND 0.25A to other contacts
Contact Resistance: 30m ohms max for Vbus, 50 m ohms all other pins
Insulator Resistance: 100 Megohms min @ 250VDC
Dielectric Withstanding: AC 100V
Operating Temperature: -20° ~ +85° C
Mating Cycles: 5000
Insulator Material: Thermoplastic
Contact Material: Copper Alloy
Shell Material: Copper Alloy
Underplate: 80u” Nickel
Contact Area Plating: 30u”Pd-Ni+2u”Gold
Solder Tail Plating: 100u”-200u” Matte Tin


Green Options: RoHS2 Directive 2011/65/EU
Type: A Type USB
Mount Type: SMT
Mount Type: Right Angle
Contact Plating: 30u’’ Pd-Ni+2u” Gold
Packaging: Tape & Reel (T&R)
Color: Blue (Pantone 300C)
Shell Plating: Tin (Matte)
Solder Tails: 100u”-200u” Tin
Mount Type: SMT
Gender: Female
Type : Single

Technical Sheets

Download SMT PDF
Download SMT CAD
