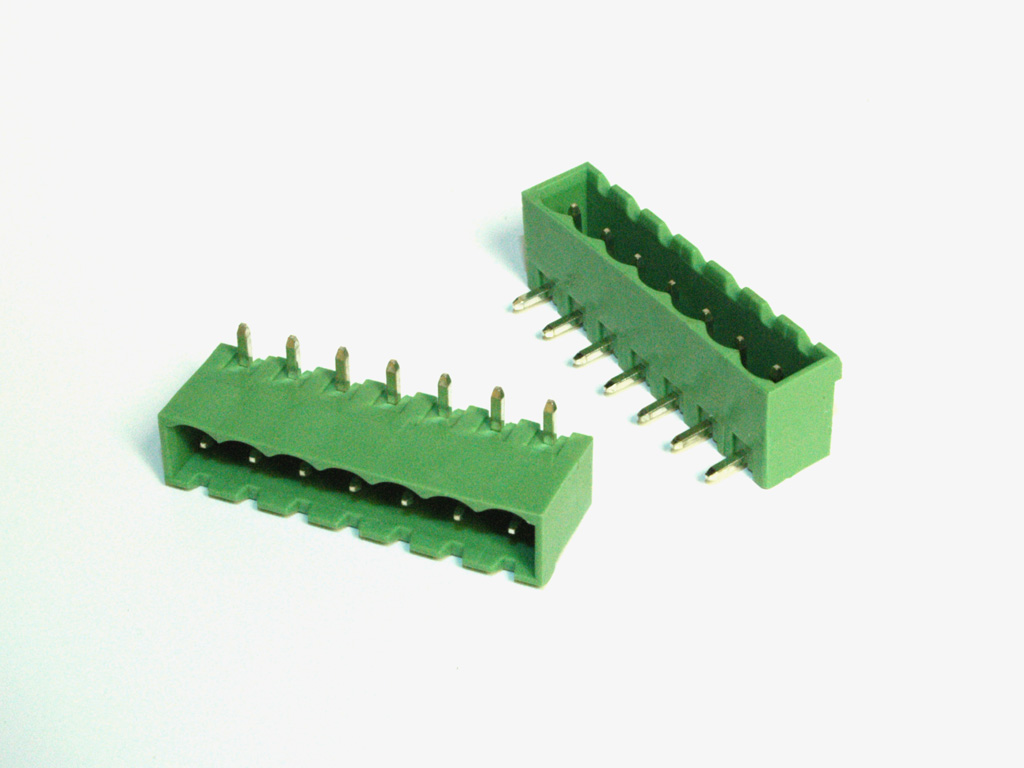

Terminal Block Pluggable Header – RPLJ-5.0

Terminal Block Pluggable Header – RPLJ-5.0

SKU: RPLJ-5.0 Categories: , Tags: ,

Terminal Block Pluggable Header Single Row 5mm – Terminal Block Pluggable Header

Application & Features

Solar Power
Power Converters, Interface Modules and Devices
Industrial Controller Boards
HVAC equipment and controls
Harsh Environments


Safety Approval: cRUus, VDE and TUV
Flame Rating: UL 94V-0
Current Rating: 20 Amps
Voltage Rating: 300V (cULus) 300V (VDE) 300V (TUV)
Withstanding Voltage: 1.6KV (cULus) 2.5KV (VDE) 2.5KV (TUV)
Operating Temperature: -40° ~ +115° C
Max Processing Temp: 250°C +/- 10℃ /5Sec
Contact Material: Copper with Tin Plating
Insulator Material: Thermoplastic


Green Options: Pb<40000ppm
Mount Type: Straight or Right Angle
Body Type: With or Without Flange
Flange Screw Nut: Brass, M2.5
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), White (RAL1102)
Color : Green RAL6018/U



Technical Sheets

Download Right Angle PDF
Download Right Angle Flange PDF
Download Straight PDF
Download Straight Flange PDF
Download Right Angle CAD
Download Right Angle Flange CAD
Download Straight CAD
Download Straight Flange CAD
