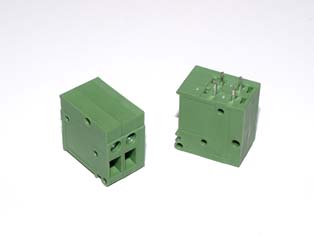

TBGI

– TBGI

SKU: TBGI Categories: , Tag:

5mm –

Specifications

Safety Approval: cRUus
Voltage Rating: 300V AC
Current Rating: 20 Amps
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Max Processing Temp: 245°C +/- 10℃ /5Sec
Contact Material: Brass
Insulator Material: NL66
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Solder Tail: Tin Plated
Wire : Stranded/Solid (AWG) 12-22
Wire Strip Length: 10-11mm
Torque: 2.4in-lb/M2.5Green Options: RoHS (lead<1000ppm) in Copper Alloy
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), White (RAL1102), Green (RAL6018/U)
Mount Type: Straight

Technical Sheets

Download PDF
Download CAD
