Solid connector solutions for the ever-changing electronic Industry.
- TBGL

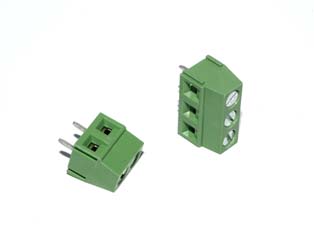

TBGL

– TBGL

SKU: TBGL Categories: , Tag:

5mm –

Specifications

Safety Approval: cULus, VDE
Voltage Rating: 300 VAC/ 250 VAC
Current Rating: 10 Amps
Wire Size Accepted: 16-26 AWG
Wire Strip Length: 6-7mm
Withstanding Voltage: 1.6KV (cRUus), 2.5KV (VDE)
Wire Range: 0.5-1.5mm²
Max Processing Temp: 250°C +/- 10℃ /10Sec
Clamp: Brass (CuZn) Ni Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Solder Pin: Brass with Tin Plating
Insulator Material: High Temperature Thermoplastic
Torque: 3.5in-LB/0.4Nm/M3Green Options: RoHS Complaint
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Grey (RAL7035/D)
Mount Type: Straight

Technical Sheets

Download PDF
Download CAD
