Solid connector solutions for the ever-changing electronic Industry.
- TBBO

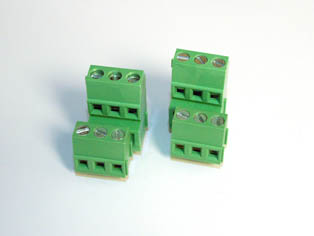

TBBO

– TBBO

SKU: TBBO Categories: , Tag:

5mm –

Specifications

Safety Approval: cRUus
Voltage Rating: 300V AC
Current Rating: 20 Amps
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Max Processing Temp: 250°C +/- 10℃ /5Sec
Flame Rating: UL 94V-0
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Clamp: Brass (CuZn) Ni Plated
Wire : Stranded/Solid (AWG) 12-22
Wire Strip Length: 6-7mm
Torque: 3.5Lb-In, M2.5Green Options: Pb<40000ppm
Color: Black (RAL9005), Red (RAL3001/D), Green (RAL6018/T)
Color: Grey (RAL7035/D)
Mount Type: Dual Level Shift

Technical Sheets

Download Right Shift PDF
Download Left Shift PDF
Download Right Shift CAD
Download Left Shift CAD
