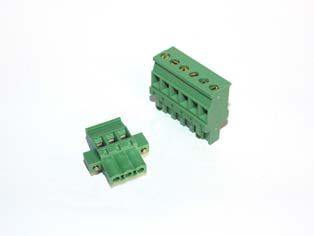

Pluggable Terminal Block Side Entry Screw & Clamp Type – RPGH-5.0

Pluggable Terminal Block Side Entry Screw & Clamp Type – RPGH-5.0

SKU: RPGH-5.0 Categories: , Tags: ,

Pluggable Terminal Block Side Entry Screw & Clamp Type Single Row 5mm – Pluggable Terminal Block Side Entry Screw & Clamp Type

Application & Features

Appliances
Electrical Outlets and Switches to Main
Ground Connections
Security
Lighting
Power Converters, Interface Modules and Devices

Specifications

Safety Approval: cRUs, TUV and VDE
Flame Rating: UL 94V-0
Current Rating: 15 Amps (cRUus), 17 Amps (TUV), 15 Amps (VDE)
Voltage Rating: 300V (cULus) 300V (VDE) 300V (TUV)
Withstanding Voltage: 1.6KV (cULus) 2.5KV (VDE) 2.5KV (TUV)
Operating Temperature: -40° ~ +115° C
Contact Material: PhBz, Tin Plated
Insulator Material: Thermoplastic
Wire Range: 2.5mm²-0.34-2.5mm²
Wire Strip Length: 6-7mm
Wire: Stranded/Solid (AWG) 12-24
Torque: 3.5Lb-In/0.5Nm/0.4Nm, M3
Clamp: Brass (CuZn) Ni Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Flange Screw: Steel Zinc plating M2.5 “+/-” slot type

Options

Green Options: Pb<40000ppm
Mounting Type: Pluggable
Body Type: With or Without Flange
Flange Screw: Steel M2.5 Zinc Plating “+/-” Slot Type
Mounting Type: Side Entry
Hook: Hook Option 1 on Entry Side
Hook: Hook Option 2 on Back Entry Side
Hook: With Flange Hook Option 3 on Entry Side
Hook: With Flange Hook Option 4 on Back Side
CP: Custom Printing
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D)

Matings

RPLJ-5.0 RPGS-5.0

Technical Sheets

Download Without Flange PDF
Download With Flange PDF
Download Without Flange PDF
Download With Flange PDF
Download Without Flange CAD
Download With Flange CAD
Download Without Flange CAD
Download With Flange CAD
