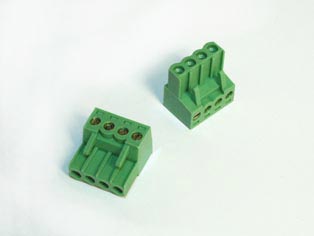

Pluggable Terminal Block Screw & Clamp Type Single Row 3.81mm – Pluggable Terminal Block Screw & Clamp Type
Application & Features
Solar Power
Power Converters, Interface Modules and Devices
Industrial Controller Boards
HVAC equipment and controls
Harsh Environments
Security
Specifications
Safety Approval: cRUus
Flame Rating: UL 94V-0
Current Rating: 8 Amps
Voltage Rating: 300V
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Contact Material: PhBz, Tin Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Strip Length: 6-7mm
Wire: Stranded/Solid (AWG) 16-28
Torque: 1.7 in-lb/M2
Clamp: Brass (CuZn) Ni Plated
Flange Screw: Steel Zinc plating M2.5 “+/-” slot type
Options
Green Options: RoHS (lead<4%) in Copper Alloy
Mounting Type: Pluggable
Body Type: With or Without Flange
Flange Screw: Steel M2.5 Zinc Plating “+/-” Slot Type
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), White (RAL1102), Green (RAL6018/U)
Matings
Technical Sheets
Download Without Flange PDF Download With Flange PDF
Download Without Flange CAD Download With Flange CAD
