- TBBL-3.50

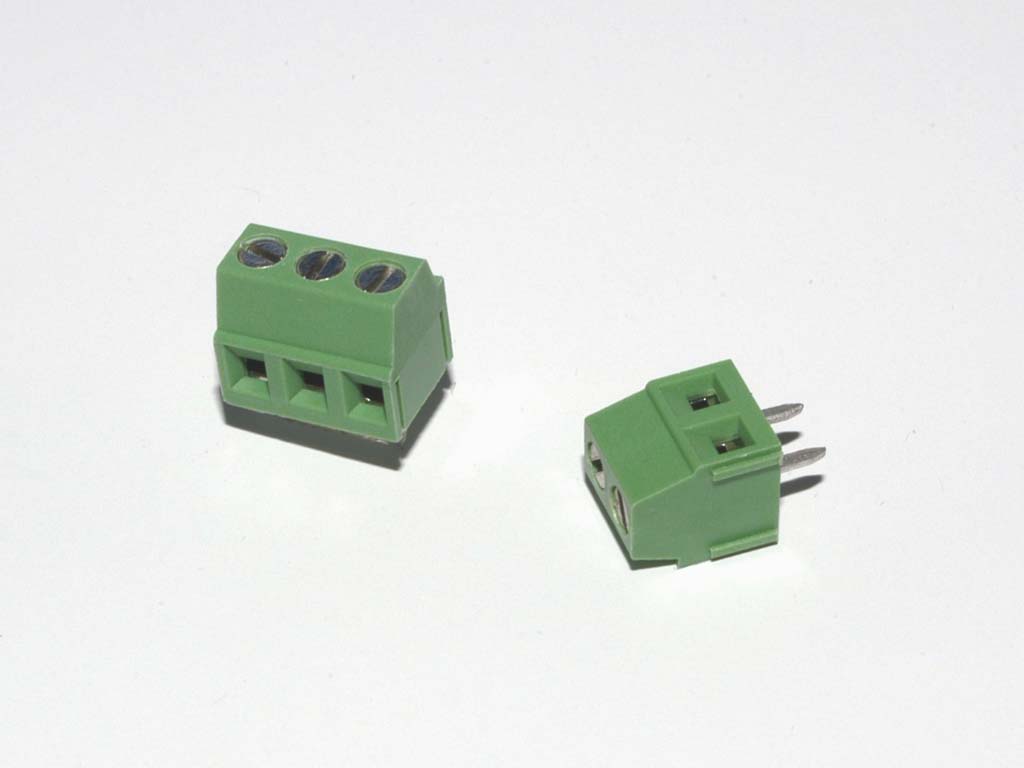

TBBL-3.50

– TBBL-3.50

SKU: TBBL-3.50 Categories: , Tag:

3.5mm –

Specifications

Flame Rating: UL 94V-0
Safety Approval: cRUus, TUV
Voltage Rating: 300V AC
Current Rating: 10 Amps/12 Amps
Wire Size Accepted: 16-24 AWG
Wire Strip Length : 5-6mm
Withstanding Voltage: 1.6KV (cRUus), 2.5KV (TUV)
Wire Range: 0.2-1.5mm²
Operating Temperature: -40° ~ +115° C
Max Processing Temp: 250°C +/- 10℃ /5Sec
Clamp: Brass (CuZn) Ni Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Solder Pin: Brass with Tin Plating
Insulator Material: High Temperature Thermoplastic
Torque: 1.7Lb-In/0.2Nm, M2Green Options: Pb<40000ppm
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), White (RAL1102), Green (RAL6018/U)
Mount Type: Straight

Technical Sheets

Download PDF
Download CAD
