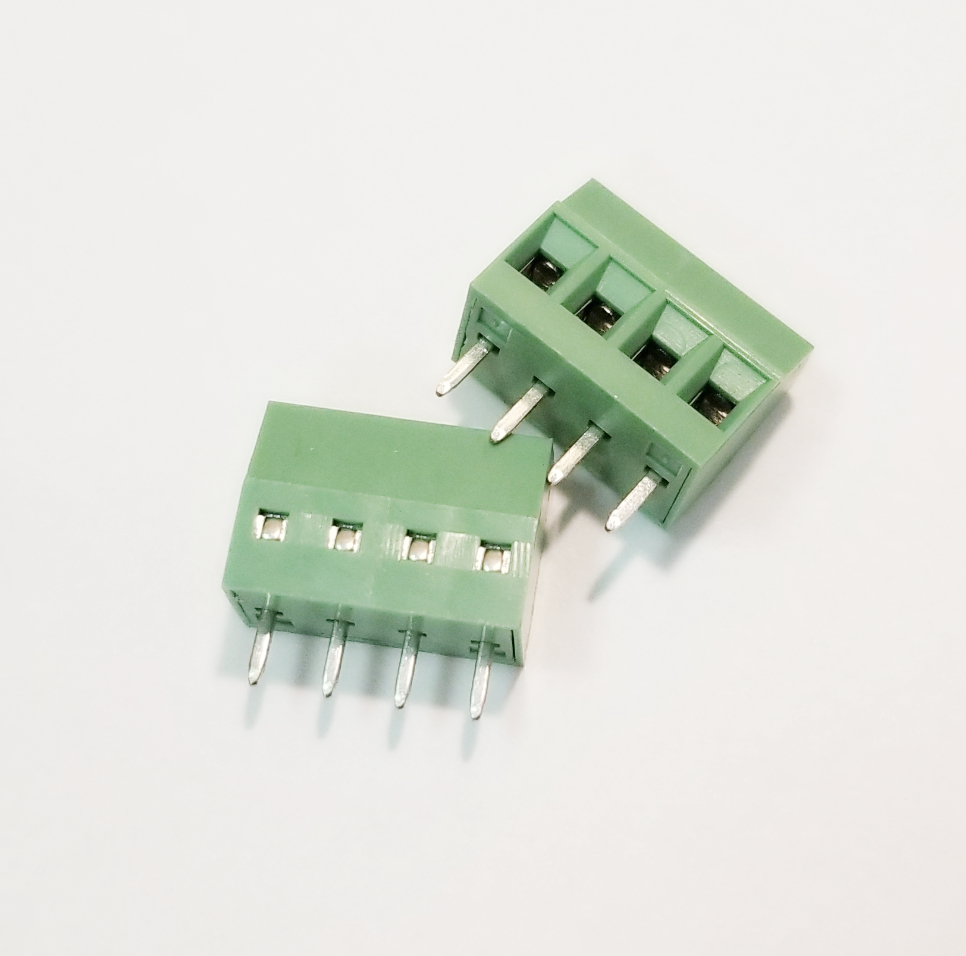

Terminal Block Header Press Fit – TBEJ

Terminal Block Header Press Fit – TBEJ

SKU: TBEJ Categories: , Tag:

Terminal Block Header Press Fit 3.5mm – Terminal Block Header Press Fit

Application & Features

Low voltage applications
Audio
Audible/visual warning systems
Cellular base stations
Controller
Communications

Specifications

Safety Approval: cRUus
Voltage Rating: 300V AC
Current Rating: 10 Amps
Wire: Stranded/Solid (AWG) 16-30
Wire Strip Length : 5-6mm
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Max Processing Temp: 250°C +/- 10℃ /5Sec
Clamp: Brass (CuZn) Ni Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Solder Pin: Brass with Tin Plating
Insulator Material: High Temperature Thermoplastic
Torque: 1.7 in-lb/M2

Options

Green Options: Pb<40000ppm
Color: Black (RAL9005), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), Green (RAL6018/U)
Mount Type: Press-Fit

Technical Sheets

Download PDF
Download CAD
