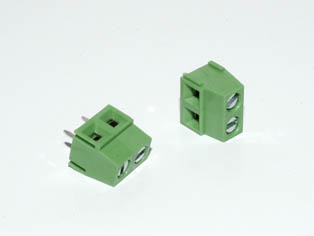

Single Screw Terminal Blocks – TBBX-5.08

Single Screw Terminal Blocks – TBBX-5.08

SKU: TBBX-5.08 Categories: , Tag:

Single Screw Terminal Blocks 5.08mm – Single Screw Terminal Blocks

Application & Features

Monitoring Industrial Processes
Medical Equipment
Robotics
Automation Systems
Robotics
Industrial Equipment

Specifications

Safety Approval: cRUus
Voltage Rating: 300V AC
Current Rating: 10 Amps
Withstanding Voltage: 1.6KV
Max Processing Temp: 250°C +/- 10℃ /5Sec
Operating Temperature: -40° ~ +115° C
Solder Pin: Brass with Tin Plating
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Strip Length: 6-7mm
Wire Size Accepted: 16-26 AWG
Torque: 3.5in-LB/0.4Nm/M3
Clamp: Brass (CuZn) Ni Plated

Options

Green Options: Pb<40000ppm
Color: Black, Green, Blue, Grey
CP: Custom Printing
Mount Type: Vertical Straight
Mounting Type: Pluggable

Technical Sheets

Download PDF
Download CAD
