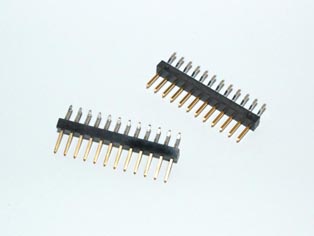

Header SMT, RA Male - SNBHY

Header SMT, RA Male – SNBHY

Header SMT, RA Male – SNBHY

SKU: SNBHY Categories: , Tag:

Header SMT, RA Male 2.54mm – Header SMT, RA Male

Application & Features

Automation Control
Digital Process Meters and Scales
Embedded control units
Industrial Controller Boards
Measuring Devices
Robotics

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 1000 Megohm min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Contact Material: Brass
Insulator Material: Polyester
Finish: Tin, Gold or Duplex Plating
Finish: Gold Plated on Contact Area, Tin Plated on Solder Area

Options

Green Options: RoHS Complaint
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Locating Peg: with or without
Mount Type: Right Angle
Solder Type: Surface Mount (SMT)
Pin Options: Other Angle Hieghts Avail.

Technical Sheets

Download PDF
Download CAD
