Solid connector solutions for the ever-changing electronic Industry.

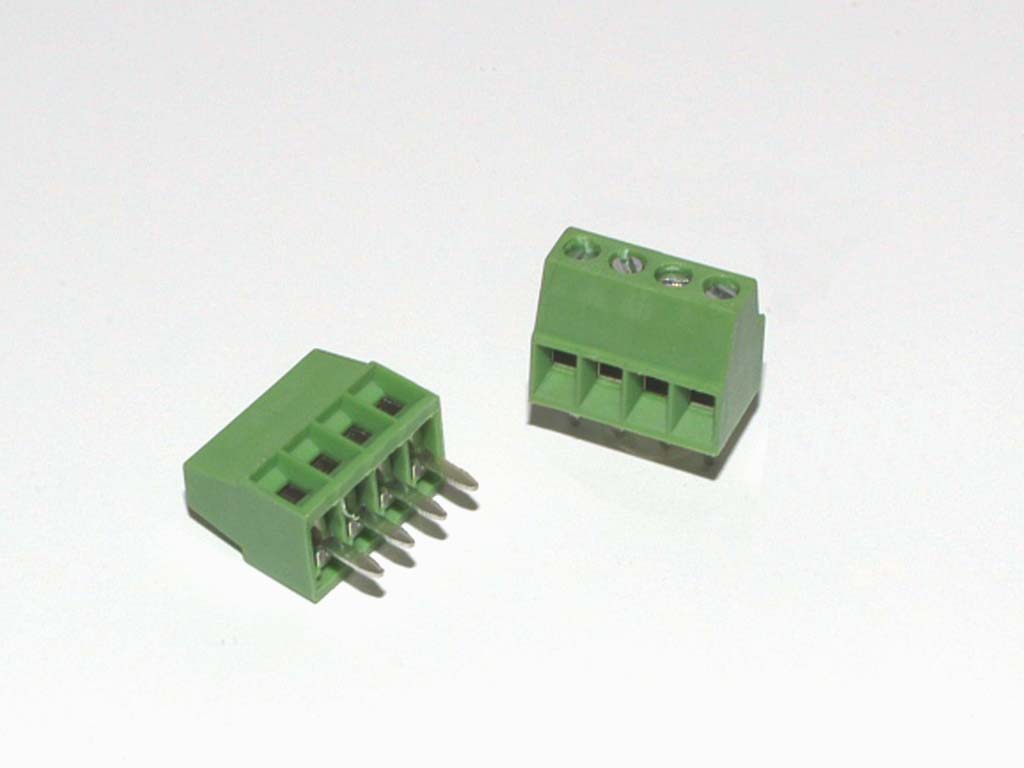

Terminal Block Header – TBEM

Terminal Block Header – TBEM

SKU: TBEM Categories: , Tag:

Terminal Block Header 2.54mm – Terminal Block Header

Application & Features

Low voltage applications
Audio
Audible/visual warning systems
Cellular base stations
Controller
Communications

Specifications

Safety Approval: cRUus
Voltage Rating: 150V AC
Current Rating: 6 Amps
Wire : Stranded/Solid (AWG) 18-30
Wire Strip Length: 4-5mm
Withstanding Voltage: 1.3KV
Operating Temperature: -40° ~ +115° C
Max Processing Temp: 250°C +/- 10℃ /5Sec
Clamp: Brass (CuZn) Ni Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Solder Pin: Brass with Tin Plating
Insulator Material: PA66
Torque: 1.3in-Lb/M1.6

Options

Green Options: Pb<40000ppm
Color: Black (RAL9005), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), Green (RAL6018/U)
Mount Type: Straight

Technical Sheets

Download PDF
Download CAD
