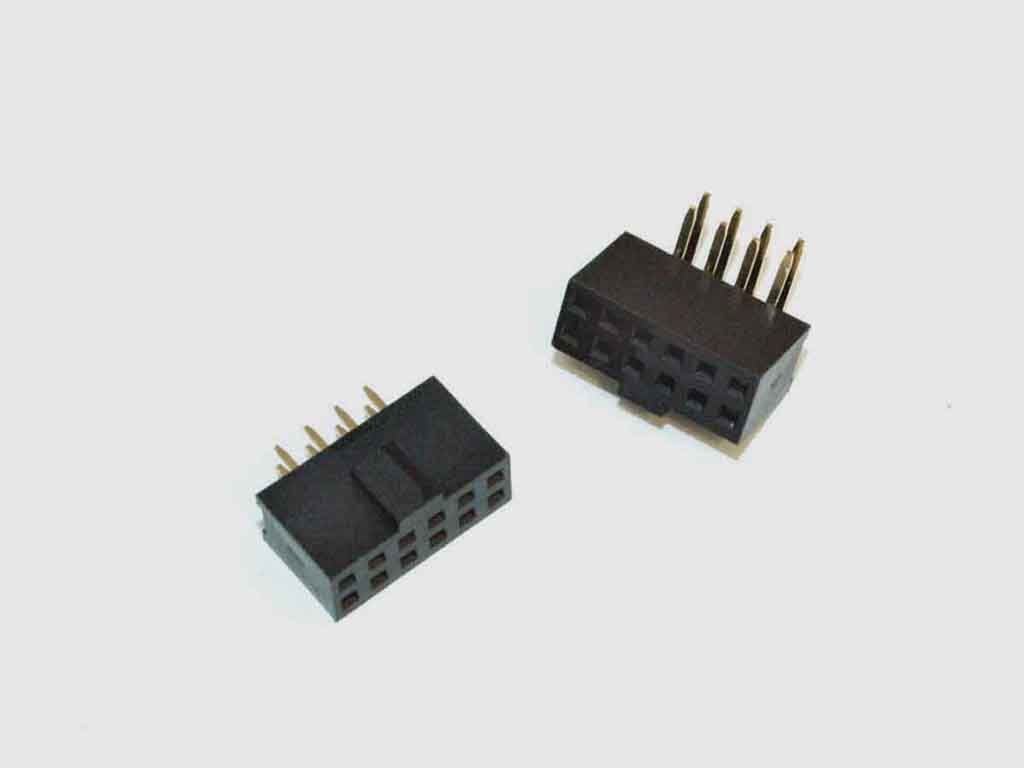

Socket, Female Header – BPHFZ

Socket, Female Header – BPHFZ

SKU: BPHFZ Categories: , Tags: ,

Socket, Female Header Dual Row 2.54mm – Socket, Female Header

Application & Features

Conflict Minerals Complaince
High Durability
High Reliability
Public Traffic Lights and Safety
Industrial Controller Boards

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 1000 Megohm min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 600V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 260°C +/- 10℃ /10Sec
Contact Material: Phosphor Bronze
Insulator Material: Polyester – PBT
Insulator Material: Polyester – Nylon 6T
Finish: Gold Flash Full Pin

Options

Green Options: RoHS2 Directive 2011/65/EU
Insulator Color: Black
Mount Type: Straight
Gender: Female
Contact Plating: Tin, Duplex Tin/Gold, Gold
Polarization: Long Bump
Polarization: Short Bump
Polarization: None
Locating Peg: with or without
Packaging: Tube

Matings

LPHS LHZ

Technical Sheets

Download Right Angle PDF
Download Straight PDF
Download Right Angle CAD
Download Straight CAD
