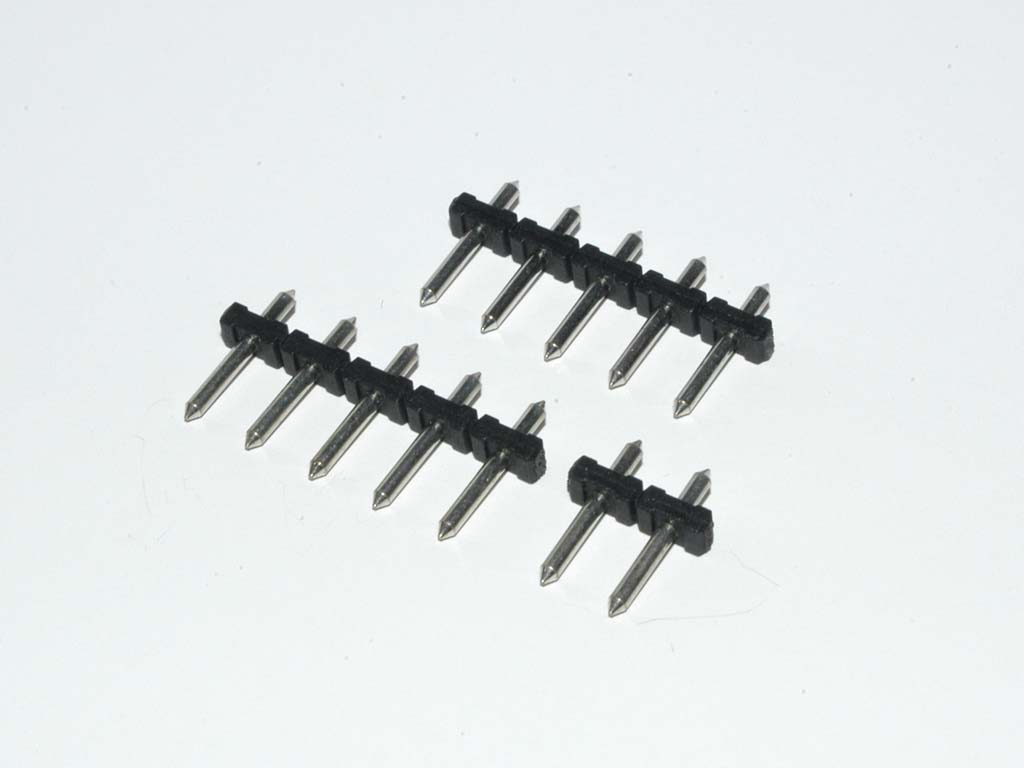

Terminal Block Pins – RPLK-5.0

Terminal Block Pins – RPLK-5.0

SKU: RPLK-5.0 Categories: , Tags: ,

Terminal Block Pins Single Row 5mm – Terminal Block Pins

Application & Features

PCB Motherboard
Digital Process Meters and Scales
Embedded control units
High Reliability
HVAC equipment and controls
Industrial Controller Boards

Specifications

Safety Approval: cRUs, TUV and VDE
Flame Rating: UL 94V-0
Current Rating: 15 Amps (CRUus) 12 Amps (VDE) 15 Amps (TUV)
Voltage Rating: 300V (cULus) 300V (VDE) 300V (TUV)
Withstanding Voltage: 1.6KV (cULus) 2.5KV (VDE) 2.5KV (TUV)
Operating Temperature: -40° ~ +115° C
Contact Material: Brass with Tin Plating
Max Processing Temp: PA66 250° +/-10 /5Sec
Max Processing Temp: PA46 280° /5Sec
Insulator Material: Thermoplastic

Options

Green Options: Pb<40000ppm
Mount Type: Vertical Straight
Contact Plating: Tin, Gold Flash – 10u
Insulator Color: Black
Gender: Male
P.C.B. : Multiple Options
Type : Single

Matings

RPGS-5.0

Technical Sheets

Download PDF
Download CAD
