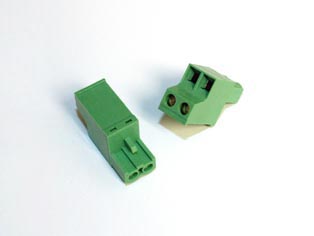

Terminal Block Pluggable Header – RPEN-3.81

Terminal Block Pluggable Header – RPEN-3.81

SKU: RPEN-3.81 Categories: , Tags: ,

Terminal Block Pluggable Header Single Row 3.81mm – Terminal Block Pluggable Header

Application & Features

Solar Power
Security
HVAC equipment and controls
Medical Instrumentation
Embedded control units
Test & Measurement Equipment

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Current Rating: 10 Amps
Voltage Rating: 300V AC
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Contact Material: PhBz, Tin Plated
Insulator Material: Thermoplastic
Wire Strip Length: 6-7mm
Torque: 1.7 in-lb/M2
Wire: Stranded/Solid (AWG) 16-28
Clamp: Steel Zinc Plated
Flange Screw: Steel Zinc plating M2.5 “+/-” slot type

Options

Green Options: Pb<40000ppm
Mounting Type: Pluggable
Body Type: With or Without Flange
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), White (RAL1102), Green (RAL6018/U)
Flange Screw: Steel M2.5 Zinc Plating “+/-” Slot Type

Matings

RPLJ-3.81

Technical Sheets

Download Without Flange PDF
Download With Flange PDF
Download Without Flange CAD
Download With Flange CAD
