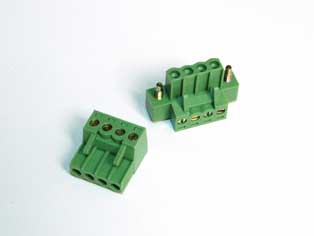

Pluggable Terminal Block Screw & Clamp Type – RPGQ-7.62

Pluggable Terminal Block Screw & Clamp Type – RPGQ-7.62

SKU: RPGQ-7.62 Categories: , Tags: ,

Pluggable Terminal Block Screw & Clamp Type Single Row 7.62mm – Pluggable Terminal Block Screw & Clamp Type

Application & Features

Solar Power
Power Converters, Interface Modules and Devices
Industrial Controller Boards
HVAC equipment and controls
Automation Systems
Security

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Current Rating: 20 Amps
Voltage Rating: 300V AC
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Contact Material: PhBz, Tin Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Strip Length: 7-8mm
Wire Size Accepted: 12-24 AWG
Torque: 5Lb-In, M3
Clamp: Brass (CuZn) Ni Plated

Options

Green Options: RoHS (lead<4%) in Copper Alloy
Mounting Type: Pluggable
Body Type: With or Without Flange
Flange Screw: Steel M2.5 Zinc Plating “+/-” Slot Type
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D)
CP: Custom Printing

Matings

RPLJ-7.62

Technical Sheets

Download Without Flange PDF
Download With Flange PDF
Download Without Flange CAD
Download With Flange CAD
