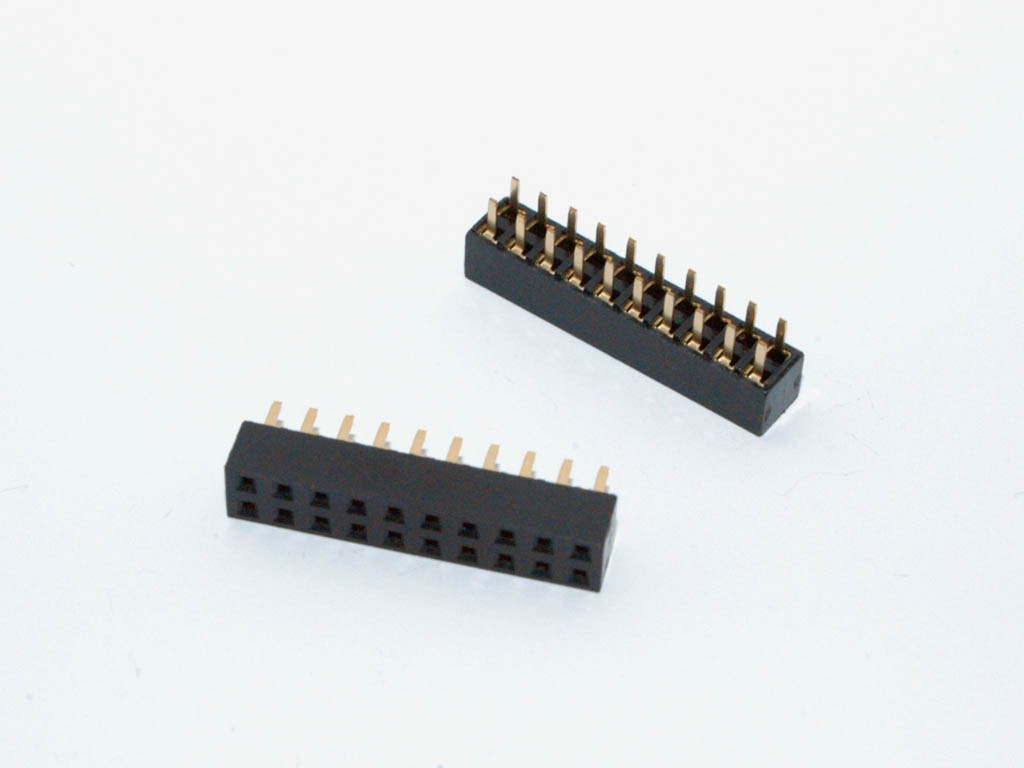

Female Header 5mm x 5.08mm – PDFZ

Female Header 5mm x 5.08mm – PDFZ

SKU: PDFZ Categories: , Tags: ,

Female Header 5mm x 5.08mm Dual Row 2.54mm – Female Header 5mm x 5.08mm

Application & Features

Robotics
Digital Process Meters and Scales
Security
Ideal for Board Stacking applications

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 1000V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating

Options

Green Options: RoHS Complaint
Mount Type: Straight or Right Angle
Contact Plating: Tin, Duplex Tin/Gold, Gold
Gender: Female
Insulator Color: Black
Packaging: Tube
Solder Type: Through Hole (TH)

Matings

LHZ

Technical Sheets

Download PDF
Download CAD
