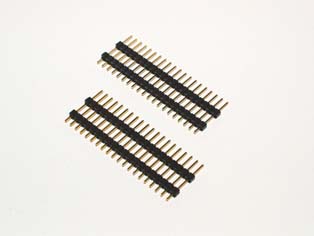

Board Stack Single Pin Header – LG

Board Stack Single Pin Header – LG

SKU: LG Categories: , Tags: ,

Board Stack Single Pin Header Single Row 2.54mm – Board Stack Single Pin Header

Application & Features

Measuring Devices
Test & Measurement Equipment
Data/Communications
Multiple Height Options
Low voltage applications
Motor & Power Controls

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 1000 Megohm min
Operating Temperature: -40° ~ +105° C
Contact Resistance: 20m ohms max
Contact Material: Brass
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash Contact Area

Options

Green Options: High Temp RoHS Compliant
Mount Type: Straight
Gender: Male
Contact Plating: Tin, Duplex Tin/Gold, Gold
Pin Length : Other Lengths Available
Packaging: Bulk
Solder Type: Through Hole (TH)
Color: Black

Technical Sheets

Download PDF
Download CAD
