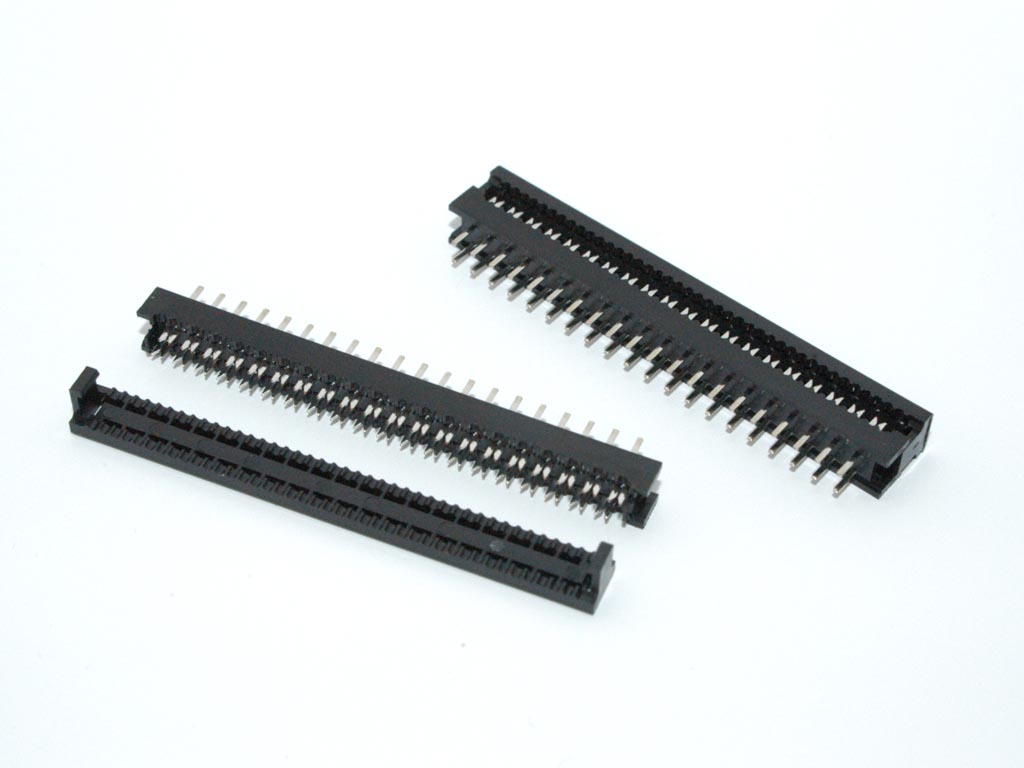

IDC Transitional Plug - FPN

IDC Transitional Plug – FPN

IDC Transitional Plug – FPN

SKU: FPN Categories: , Tags: ,

IDC Transitional Plug Dual Row 2.54mm – IDC Transitional Plug

Application & Features

Low Profile (LP)
Low voltage applications
Insulation-piercing contacts
Telecommunications
Disconnect Applications
Ideal for interconnecting PCB’s in a permanent flat cable transition

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 1000 Megohm min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -55° ~ +105° C
Contact Material: Phosphor Bronze
Contact Material: Brass
Insulator Material: Polyester – PBT
Finish: Gold over Nickel

Options

Green Options: RoHS Complaint
Mount Type: Straight
Packaging: Tray
Packaging: Tube
Color: Black
Contact Plating: Selective Gold
Contact Plating: Gold
Solder Type: Through Hole (TH)

Technical Sheets

Download PDF
Download CAD
