Solid connector solutions for the ever-changing electronic Industry.

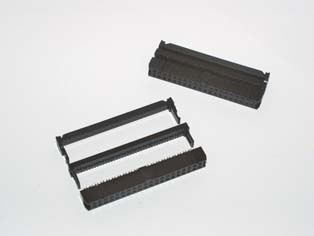

Flat Cable IDC – PFCS

Flat Cable IDC – PFCS

SKU: PFCS Categories: , Tags: ,

Flat Cable IDC Dual Row 2.54mm – Flat Cable IDC

Application & Features

Industry Standard
Low voltage applications
Insulation-piercing contacts
Telecommunications
Networking and Computer Cables

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 3000 Megohms min
Contact Resistance: 30m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Contact Material: Brass
Insulator Material: Polyester – PBT
Finish: Gold over Nickel
Finish: Duplex Plating
Wire Size Accepted: 1.27mm Spacing 28AWG

Options

Green Options: RoHS Complaint
Polarization: Locating Peg
Polarization: None
Packaging: Bulk
Color: Black

Matings

LHZ LF
