Micro Pitch Interconnect Socket – MPVS9

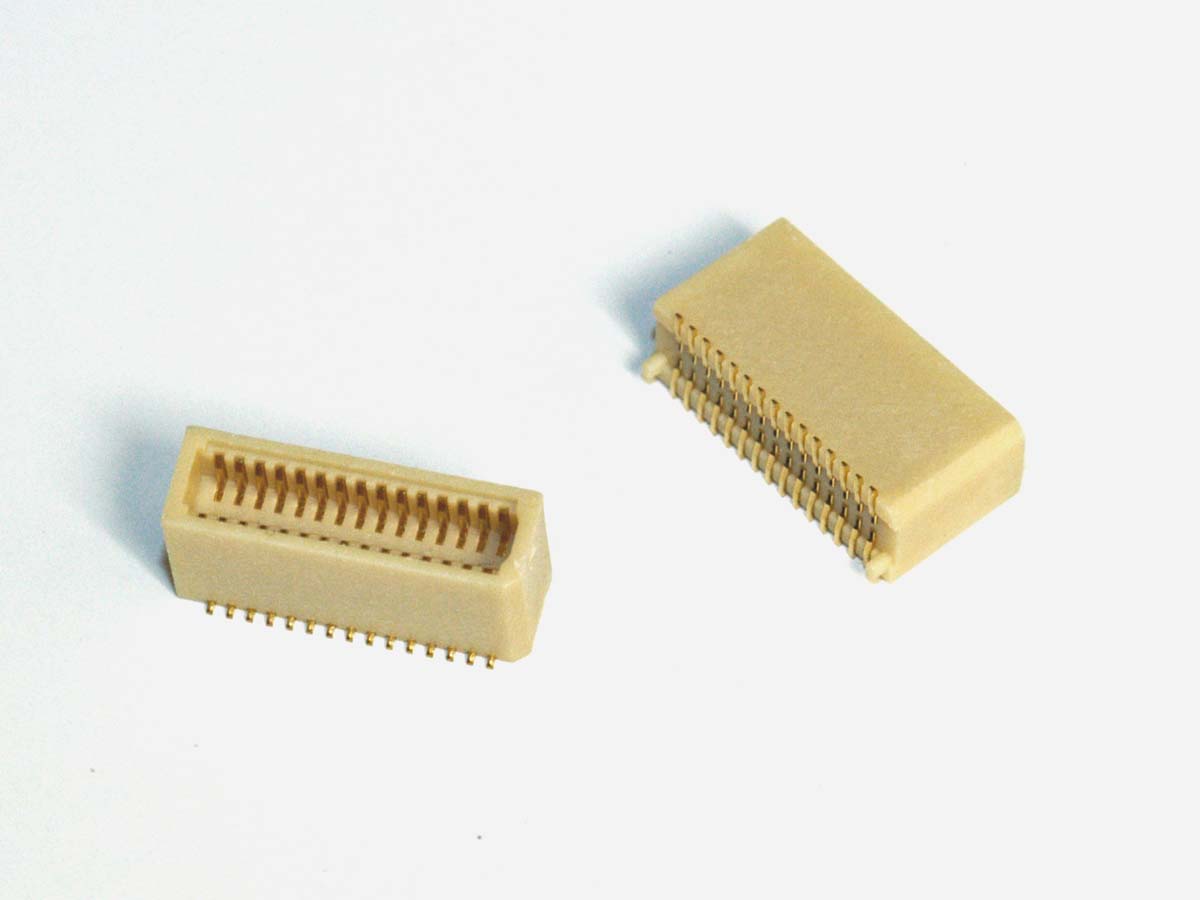

Micro Pitch Interconnect Socket – MPVS9

SKU: MPVS9 Categories: , Tag:

Micro Pitch Interconnect Socket 0.8mm – Micro Pitch Interconnect Socket

Specifications

Flame Rating: UL 94V-0
Current Rating: 0.5 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 40m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +85° C
Contact Material: Phosphor Bronze
Insulator Material: High Temperature Thermoplastic
Contact Plating: Gold over NickelGreen Options: RoHS Complaint
Contact Plating: Selective Tin
Contact Plating: Selective Gold
Locating Peg: with or without
Packaging: Tube (w/o Film)
Packaging: Reel(w/o Film)
Packaging: Film & Reel
Mount Type: Straight

Technical Sheets

Download PDF
Download CAD
