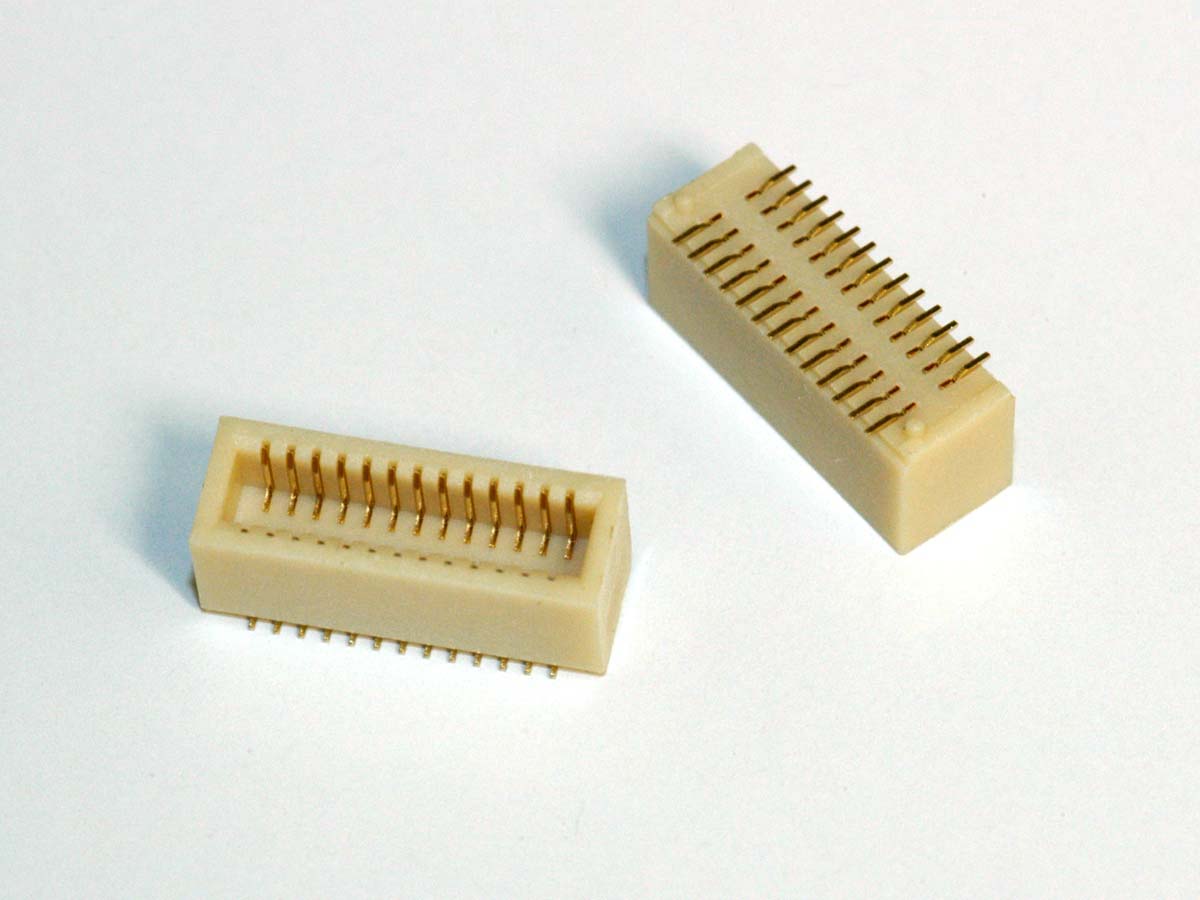

Micro Connector – MPVS1

Micro Connector – MPVS1

SKU: MPVS1 Categories: , Tag:

Micro Connector 0.8mm – Micro Connector

Application & Features

Parallel Board Stacking
Mobile Devices
Automotive
Ideal for Board Stacking applications
Handheld Terminals
Ideal for Board Stacking applications

Specifications

Flame Rating: UL 94V-0
Current Rating: 0.5 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 40m ohms max
Dielectric Withstanding: AC 500V
Contact Material: Copper Alloy

Options

Green Options: RoHS Complaint
Contact Plating: Gold
Locating Peg: with or without
Packaging: Tube (w/o Film)
Packaging: Reel(w/o Film)
Packaging: Film & Reel
Packaging: MPad & Reel
Mount Type: Straight

Technical Sheets

Download PDF
Download CAD
