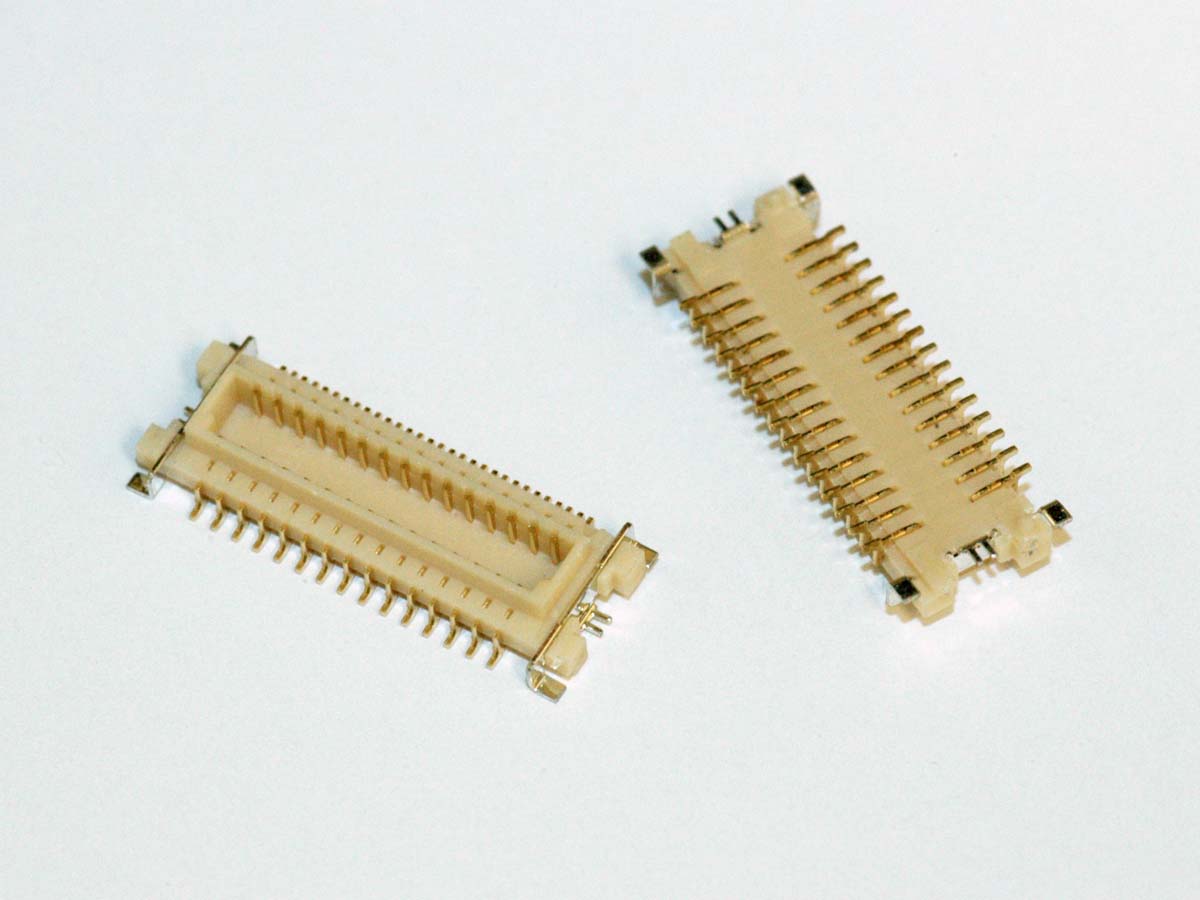

Micro Pitch Interconnect Socket – MPG8

Micro Pitch Interconnect Socket – MPG8

SKU: MPG8 Categories: , Tag:

Micro Pitch Interconnect Socket 0.8mm – Micro Pitch Interconnect Socket

Application & Features

Parallel Board Stacking
Mobile Devices
Home Automation
Measuring Devices
Electrical Devices
Handheld Terminals


Flame Rating: UL 94V-0
Current Rating: 0.5 Amp
Insulator Resistance: 500 Megohms min
Contact Resistance: 70m ohms max
Voltage Rating: 50V
Voltage Rating: 500V AC
Operating Temperature: -40° ~ +85° C
Housing : High Temp Plastic
Contact Material: Copper Alloy
Finish: Gold over Nickel


Green Options: RoHS2 Directive 2011/65/EU
Gender: Female
Contact Plating: Selective Tin & Gold
Locating Peg: with or without
Packaging: Tube (w/o Film)
Packaging: Reel(w/o Film)
Packaging: MPad & Reel
Mount Type: Straight
Solder Type: Surface Mount (SMT)

Technical Sheets

Download PDF
Download CAD
