Pin Header - LTY

Pin Header – LTY

Pin Header – LTY

SKU: LTY Categories: , Tags: ,

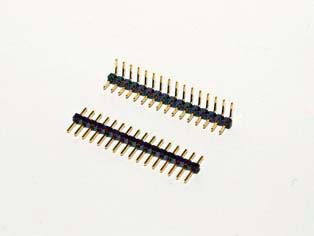

Pin Header Single Row 2mm – Pin Header

Application & Features

Measuring Devices
Test & Measurement Equipment
Data/Communications
Aeuronautics
Handheld Terminals
Motor & Power Controls

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 230° for 30 seconds (260° for 10 seconds)
Contact Material: Brass
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: High Temp RoHS Compliant
Mount Type: Straight or Right Angle
Pin Options: Other Angle Hieghts Avail.
Pin Length : Other Lengths Available
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash

Technical Sheets

Download PDF
Download CAD
