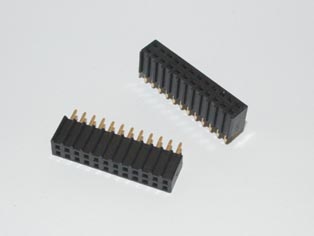

Female Header Dual Socket – PWFZ

Female Header Dual Socket – PWFZ

SKU: PWFZ Categories: , Tags: ,

Female Header Dual Socket Dual Row 2.54mm – Female Header Dual Socket

Application & Features

Aeuronautics
Public Traffic Lights and Safety
PCB Motherboard
Security
Industrial Controller Boards
Embedded control units

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 1000V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 230° for 30 seconds (260° for 5 seconds)
Contact Material: Copper Alloy
Insulator Material: Polyester – PBT
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash All Over
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: RoHS Complaint
Mount Type: Straight
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Type: Dual

Technical Sheets

Download PDF
Download CAD
