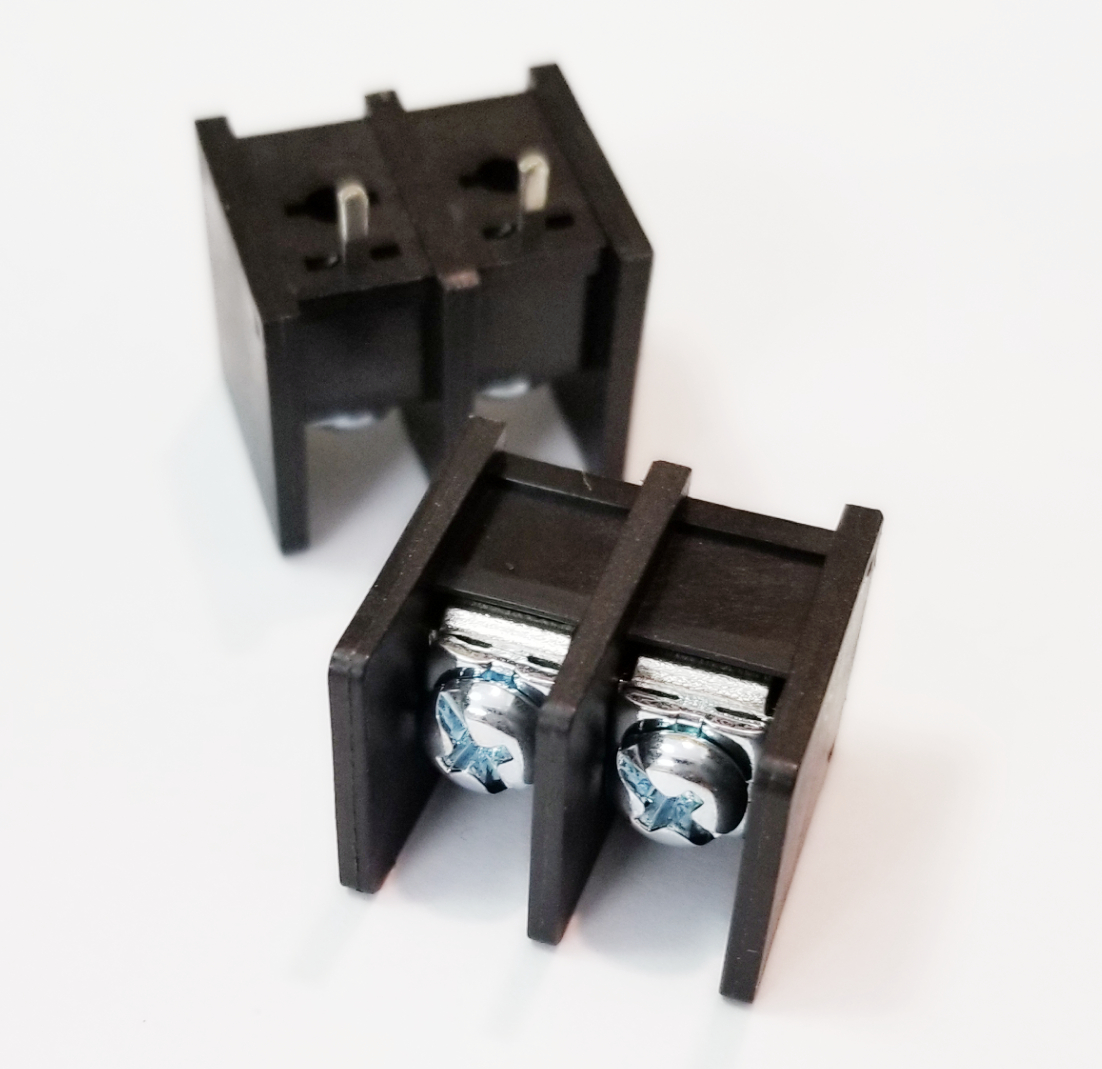

Barrier Type Terminal Blocks – BTS-514

Barrier Type Terminal Blocks – BTS-514

SKU: BTS-514 Categories: , Tag:

Barrier Type Terminal Blocks 9.5mm – Barrier Type Terminal Blocks

Application & Features

Surge Protection
Multimedia Players
Electrical Outlets and Switches to Main
Automation Control


Voltage Rating: 300V AC
Dielectric Withstanding: AC 2000V
Current Rating: 30 Amps
Insulator Resistance: 1000 Megohm min. at 500V DC
Operating Temperature: -40° ~ +115° C
Torque: 8.8 in-lb, M3.5
Wire Range: 10-22 AWG
Insulator Material: Thermoplastic
Terminal: Brass, 0.8t Tin Plated
Termianl Screw: Steel
Safety Approval: cRUus


Green Options: RoHS (lead<4%) in Copper Alloy
Color: Black
Terminal & Screw: Gold Flash
Terminal: Tin
Terminal: Gold Flash
Screw: Gold Flash
Screw: Zinc
Screw: Tin
Body Type: W/O Flange

Technical Sheets

Download PDF
Download CAD
