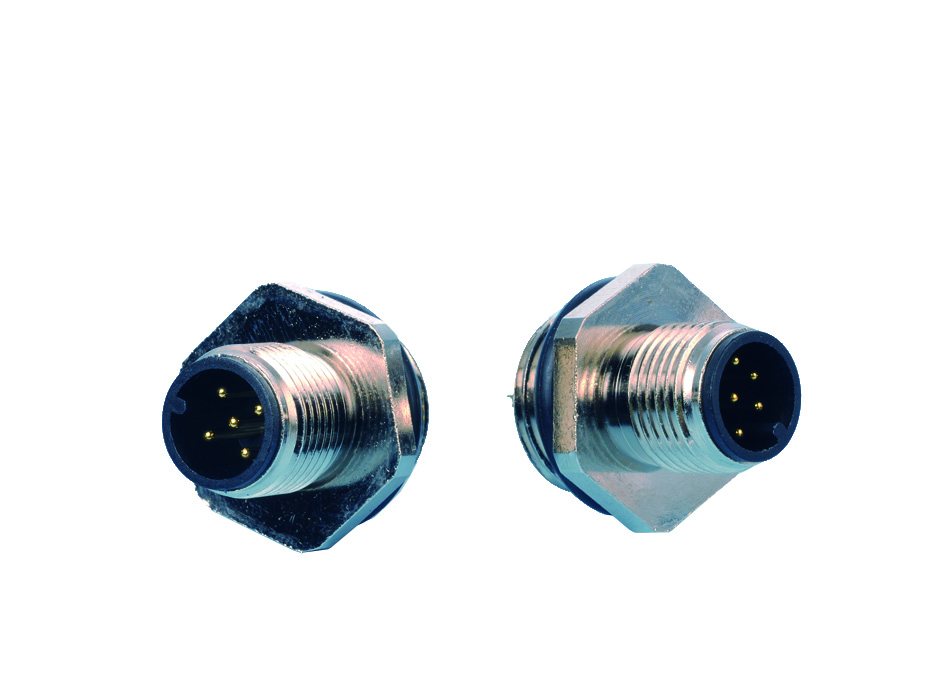

M12 Male Panel Mount Connector – WMP

M12 Male Panel Mount Connector – WMP

SKU: WMP Categories: ,

M12 Male Panel Mount Connector M12 Male Panel Mount Connector

Application & Features

Factory Automation
Communications
Medical Electronics
Transportation
Industrial Equipment & Tools
Commercial

Specifications

Flame Rating: UL 94V-0
Contact Material: Copper Alloy
Solder Tails: Steel w/ Ni Plating
Contact Underplate: 50u”~100u” Nickel
Contact Area: Gold Plating
Contact Area: 1u” Gold
Current Rating: 4 Amps
Insulator Resistance: 100 Megohms min
Protection Certification: IP67 (IEC60529)
Operating Temperature: -20° ~ +85° C
Durability: 100 Mating Cycles

Options

Green Options: RoHS Complaint
Gender: Male
Contact Plating: Selective Gold
Solder Tails: Gold
Mount Type: Panel Mount Header
Shell Plating: Nickel
Coding: A-Code
Coding : B-Coding
Packaging: Tray
Packaging: Tape & Reel (w/o Film)
Color: Black

Technical Sheets

Download PDF
Download CAD
