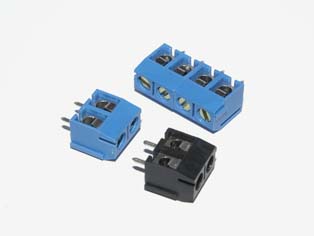

TBGX

– TBGX

SKU: TBGX Categories: , Tag:

5mm –

Specifications

Safety Approval: cULus, VDE
Voltage Rating: 300 VAC/ 250 VAC
Current Rating: 15 Amps (cRUus), 17.5 Amps (VDE)
Withstanding Voltage: 1.6KV (cRUus), 2KV (VDE)
Operating Temperature: -40° ~ +115° C
Max Processing Temp: 250°C +/- 10℃ /5Sec
Wire Guard Material: Stainless Steel
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: High Temperature Thermoplastic
Wire Range: 0.5-1.5mm²
Wire Strip Length : 5-6mm
Wire: Stranded/Solid (AWG) 14-24
Torque: 2.6Lb-In/0.4Nm/M2.6Green Options: RoHS Complaint
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Grey (RAL7035/D), White (RAL1102)
Pin Length : Other Lengths Available
Mount Type: Stackable

Technical Sheets

Download PDF
Download CAD
