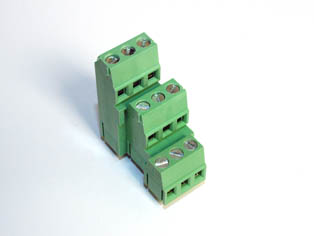

Triple Deck PCB Screw Terminal Blocks – TBBM-5.08

Triple Deck PCB Screw Terminal Blocks – TBBM-5.08

SKU: TBBM-5.08 Categories: , Tag:

Triple Deck PCB Screw Terminal Blocks 5.08mm – Triple Deck PCB Screw Terminal Blocks

Application & Features

Industrial Controller Boards
Security
Automation Control
Robotics
HVAC equipment and controls
Increased Circuit Flexibility

Specifications

Flame Rating: UL 94V-0
Voltage Rating: 300V AC
Current Rating: 10 Amps
Withstanding Voltage: 1.6KV
Max Processing Temp: 250°C +/- 10℃ /5Sec
Operating Temperature: -40° ~ +115° C
Solder Pin: Brass with Tin Plating
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Strip Length: 6-7mm
Wire: Stranded/Solid (AWG) 12-24
Torque: 3.5Lb-In, M2.5
Clamp: Brass (CuZn) Ni Plated

Options

Green Options: Pb<40000ppm
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Gray (RAL7035/D)
Mount Type : Triple Level Vertical Straight

Technical Sheets

Download PDF
Download CAD
