Shrouded Box Header SMT – SPHS

Shrouded Box Header SMT – SPHS

SKU: SPHS Categories: , Tags: ,

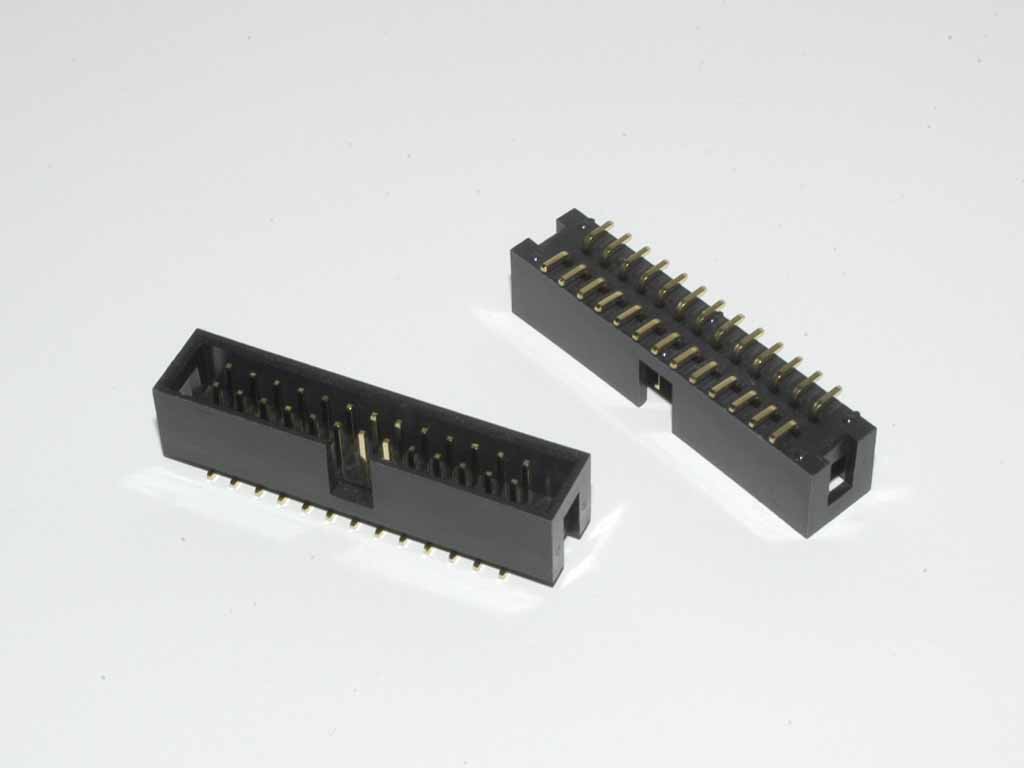

Shrouded Box Header SMT Dual Row 2.54mm – Shrouded Box Header SMT

Application & Features

Embedded control units
Industrial Controller Boards
PCB Motherboard
Public Traffic Lights and Safety
Test & Measurement Equipment


Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 230° for 30 seconds (260° for 10 seconds)
Insulator Material: Polyester – Nylon 6T
Contact Material: Brass or Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating


Green Options: RoHS2 Directive 2011/65/EU
Mount Type: SMT
Pin Type: Blunt Cut (Standard) or Formed Pins
Contact Plating: Tin, Duplex Tin/Gold, Gold
Gender: Male
Insulator Color: Black
Packaging: Tray
