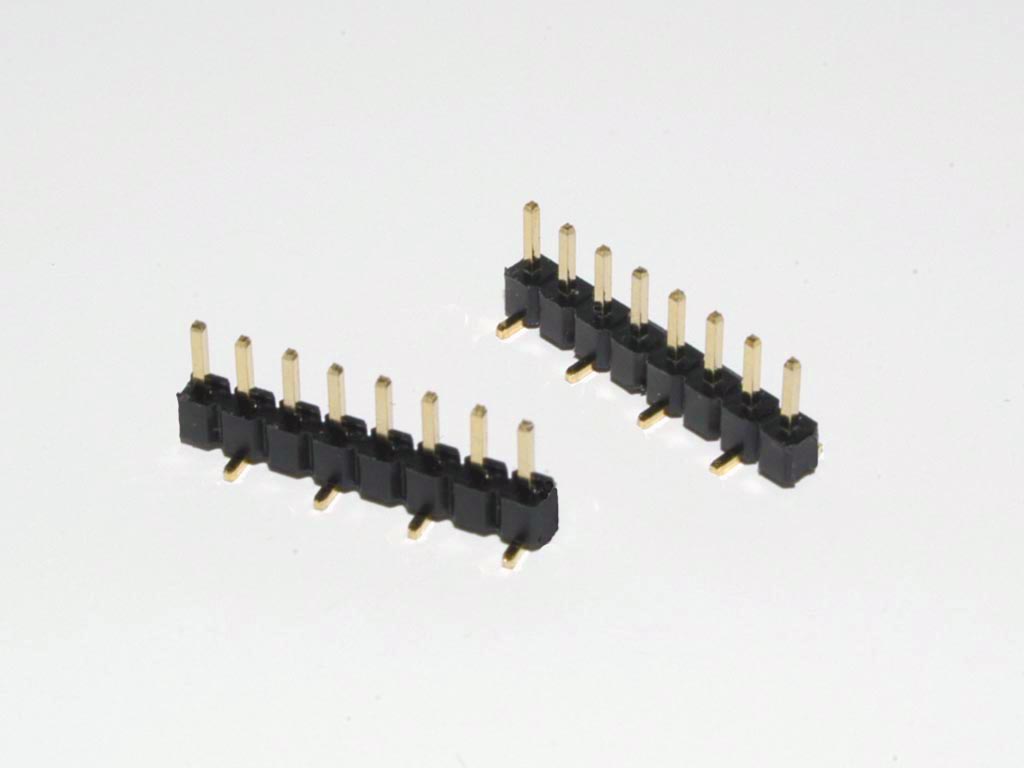

SBHY

– SBHY

SKU: SBHY Categories: , Tag:

Specifications

Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Voltage Rating: 250V AC/DC
Operating Temperature: -40° ~ +105° C
Contact Material: Brass
Insulator Material: Polyester
Insulator Material: Nylon-6T
Finish: Gold Plating
Finish: Gold Flash All OverGreen Options: High Temp RoHS Compliant
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Pin Length : Other Lengths Available
Locating Peg: with or without
Packaging: Tube
Packaging: Cap+Tube
Packaging: Cap+Tape & Reel
Packaging: In Bag

Technical Sheets

Download PDF
Download CAD
