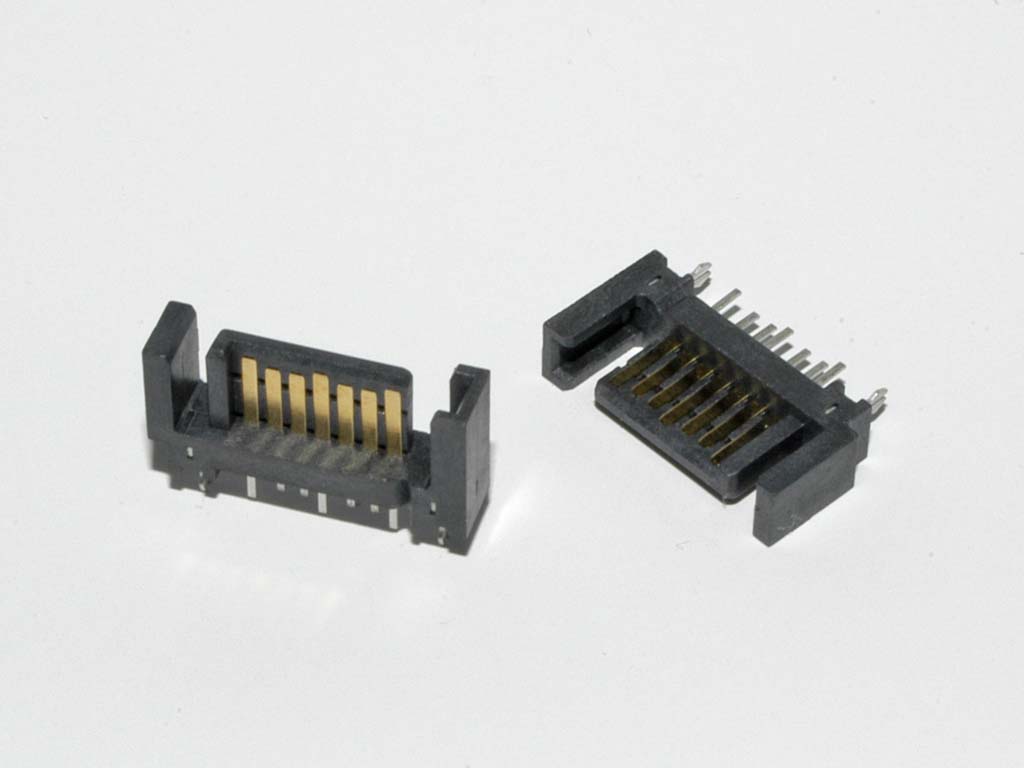

Serial ATA, 7 positon Vertical – SATM

Serial ATA, 7 positon Vertical – SATM

SKU: SATM Categories: , Tags: ,

Serial ATA, 7 positon Vertical Single Row 1.27mm – Serial ATA, 7 positon Vertical

Application & Features

Industrial Systems
Solid State Drives
Servers and Personal Computer
Networking and Computer Cables
Embedded control units


Voltage Rating: 500V AC
Current Rating: 1.5 Amps
Insulator Resistance: 1000 Megohm min
Contact Resistance: 30m ohms max
Operating Temperature: -55° ~ +125° C
Contact Material: Brass
Harpoon Material: Brass
Insertion Force: 45N Max
Extraction Force: 10N Min.
Durabilty: 500 Cycles


Green Options: High Temp RoHS Compliant
Contact Plating: Selective Gold
Color: Multiple Colors
Material Compliance: Halogen Free

Technical Sheets

Download PDF
Download CAD
