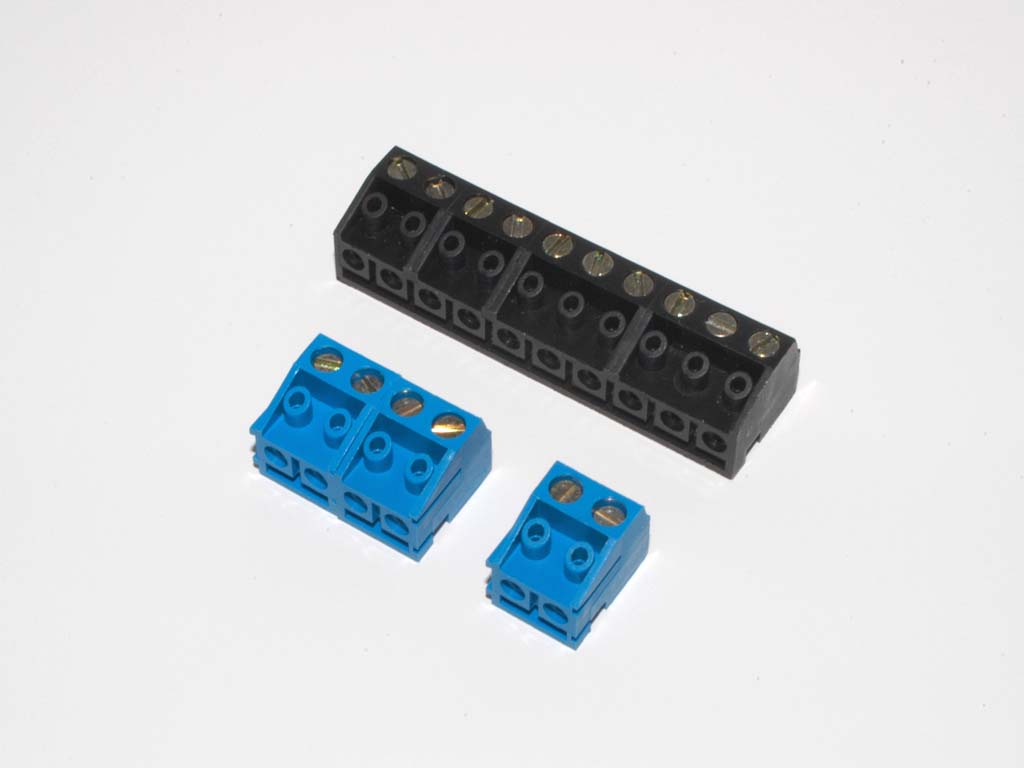

Pluggable Terminal Block Dovetailed – RPVS-3.5

Pluggable Terminal Block Dovetailed – RPVS-3.5

SKU: RPVS-3.5 Categories: , Tags: ,

Pluggable Terminal Block Dovetailed Single Row 3.5mm – Pluggable Terminal Block Dovetailed

Application & Features

Security
Wire Protector System
Embedded control units
HVAC equipment and controls
Lighting
Power Converters, Interface Modules and Devices

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Insulator Material: Thermoplastic
Voltage Rating: 150V AC
Current Rating: 10 Amps
Withstanding Voltage: 1.3KV
Operating Temperature: -40° ~ +115° C
Contact Material: Phosphor Bronze
Terminal Screw Material: Steel, Zinc Plated
Wire Strip Length : 5-6mm
Wire: Stranded/Solid (AWG) 16-28
Torque: 1.1Lb-In/M2
Clamp: Brass (CuZn) Ni Plated

Options

Green Options: Pb<40000ppm
Mounting Type: Pluggable
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), White (RAL1102), Green (RAL6018/U)

Matings

RPLK-3.5

Technical Sheets

Download PDF
Download CAD
