Elevated Socket Header - QPHFZ

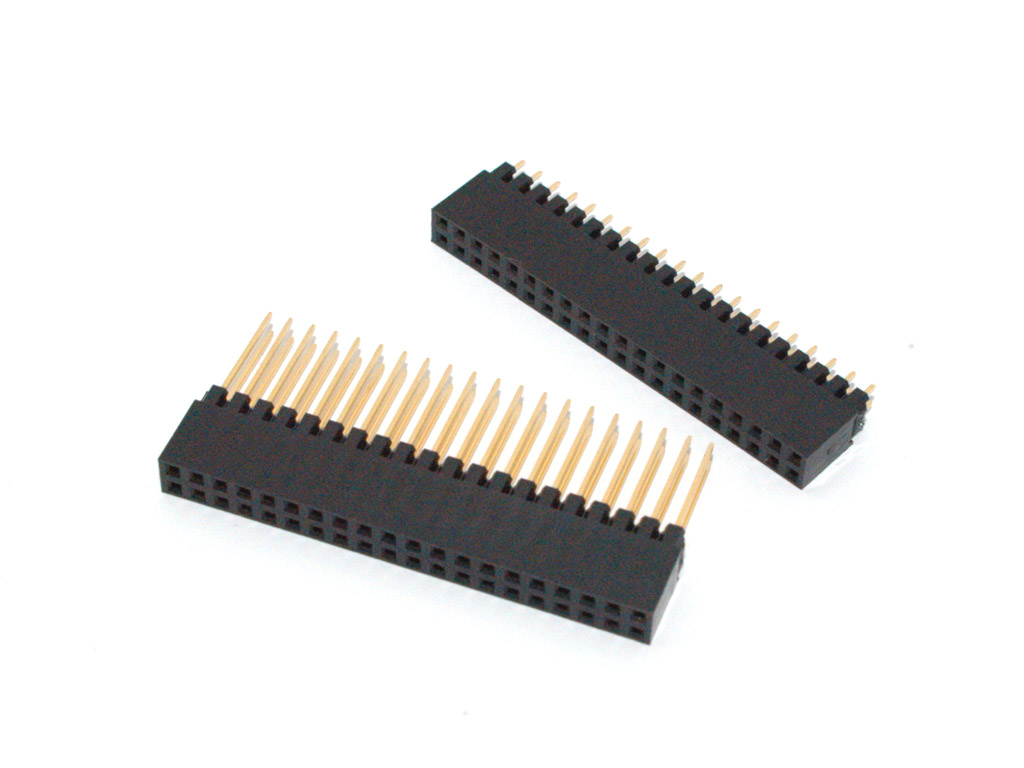

Elevated Socket Header – QPHFZ

Elevated Socket Header – QPHFZ

SKU: QPHFZ Categories: , Tags: ,

Elevated Socket Header Dual Row 2.54mm – Elevated Socket Header

Application & Features

Embedded control units
High Profile
Public Traffic Lights and Safety
High Mating Cycles
PC104
Ideal for Board Stacking applications

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 230° for 30 seconds (260° for 5 seconds)
Contact Material: Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Finish: Gold and Tin

Options

Green Options: RoHS2 Directive 2011/65/EU
Mount Type: Straight
Contact Plating: Tin, Gold Flash 3u-30u, Duple 3u-30u
Color: Black
Gender: Female
Packaging: Tube

Matings

LHZ

Technical Sheets

Download PDF
Download CAD
