Solid connector solutions for the ever-changing electronic Industry.
RJ45 with LED's - AMJ-208

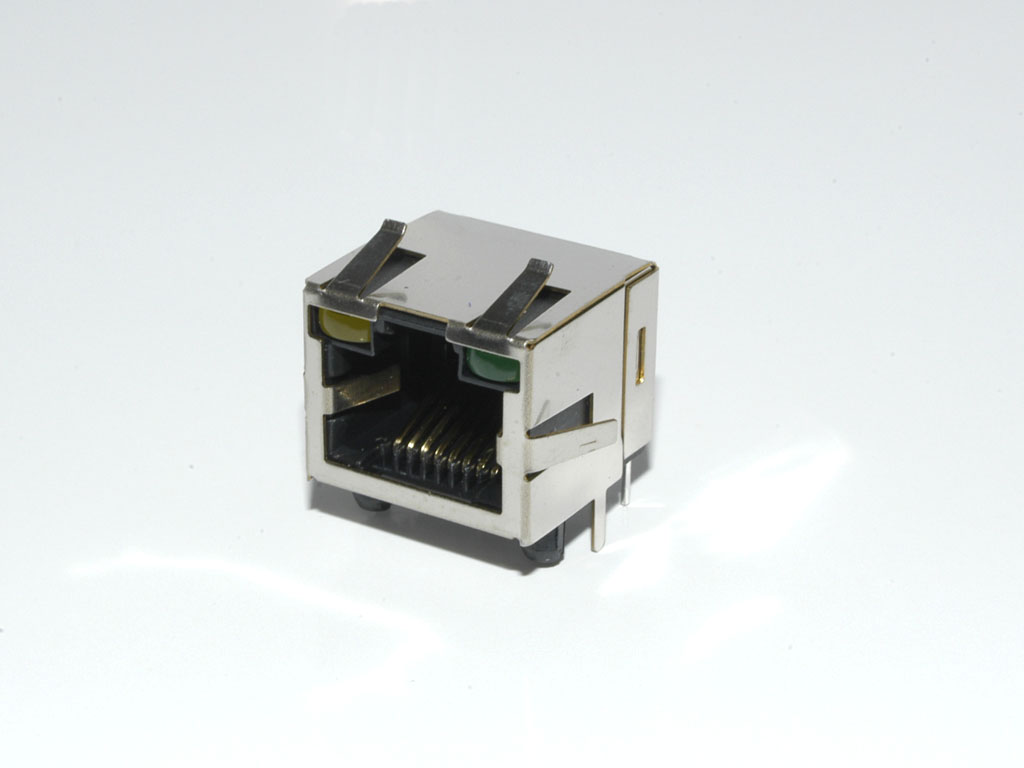

RJ45 with LED’s – AMJ-208

RJ45 with LED’s – AMJ-208

SKU: AMJ-208 Categories: , Tags: ,

RJ45 with LED’s Single Row 2.54mm – RJ45 with LED’s

Application & Features

RJ-45 connection meets CAT3, 5e and 6 Fast Ethernet
Hubs & Routers
Data/Communications
Gaming Systems
Handheld Terminals
Point of Sale (POS)

Specifications

Flame Rating: UL 94V-0
Insulator Resistance: 1000 Megohm min
Contact Resistance: 20m ohms max
Current Rating: 1.5 Amps
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +85° C
Contact Material: Copper Alloy
Insulator Material: Polyester – PBT
Shell Material: Copper Alloy
Finish: Gold Plated on Contact Area, Tin Plated on Solder Area
Mating Cycles: 500 Min.

Options

Green Options: RoHS Complaint
Color: Black
Contact Plating: Selective Gold – 6u
Gender: Male
Mount Type: Right Angle
Packaging: Tray
Solder Type: Through Hole (TH)
Type : Single
Options: See PDF/CAD for all details

Technical Sheets

Download PDF
Download CAD
