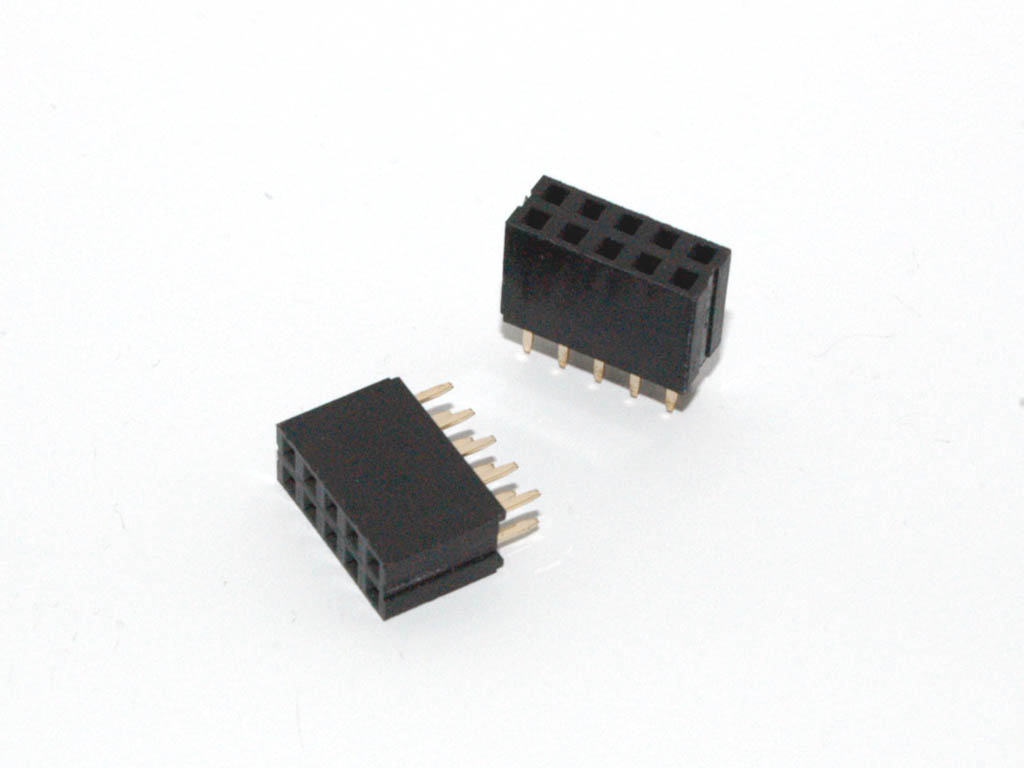

Female Header Socket - PHFZ

Female Header Socket – PHFZ

Female Header Socket – PHFZ

SKU: PHFZ Categories: , Tags: ,

Female Header Socket Dual Row 2.54mm – Female Header Socket

Application & Features

Automotive
Public Traffic Lights and Safety
PCB Motherboard
Security
Industrial Controller Boards

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 1000V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash All Over
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Gold, Duplex, and Standard Gold Flash
Gender: Female
Insulator Color: Black
Mount Type: Straight

Technical Sheets

Download Right Angle PDF
Download Straight PDF
Download Right Angle CAD
Download Straight CAD
