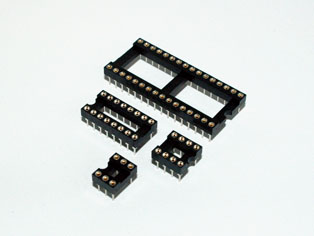

DIP Dual in-line IC sockets – MSIC-SP

DIP Dual in-line IC sockets – MSIC-SP

SKU: MSIC-SP Categories: , Tags: ,

DIP Dual in-line IC sockets Dual Row 2.54mm – DIP Dual in-line IC sockets

Application & Features

Automated Assembly
Quick and easy device replacement

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Material: Polyester – PBT
Contact Resistance: 20m ohms max
Insulator Resistance: 1000 Megohm min. at 500V DC
Dielectric Withstanding: AC 500V
Operating Temperature: -55° ~ +105° C
Contact Material: Inner Clip: Beryllium Copper
Contact Material: Outer: Brass
Contact Plating: Inner:1.3u” Gold
Contact Plating: Outer:200u” Tin

Options

Green Options: RoHS Complaint
Contact Plating: Selective Tin & Gold
Row Spacing: Other options Available
Type: Machined
Bar Option : w/o Bar
Bar Option : With Bar
Color: Black

Technical Sheets

Download PDF
Download CAD
