Solid connector solutions for the ever-changing electronic Industry.

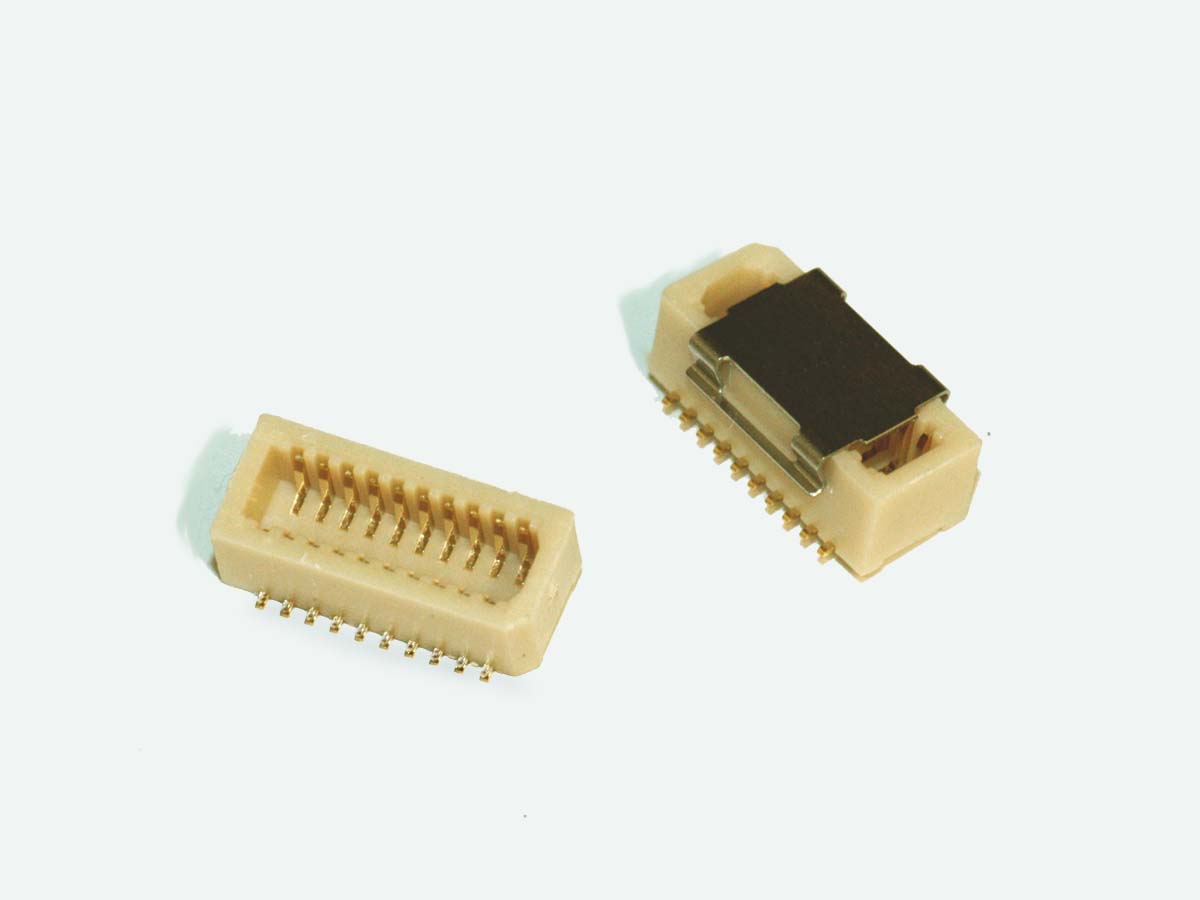

Micro Socket RA – MPVS01

Micro Socket RA – MPVS01

SKU: MPVS01 Categories: , Tag:

Micro Socket RA 0.8mm – Micro Socket RA

Application & Features

Parallel Board Stacking
Mobile Devices
Ideal for Board Stacking applications
Handheld Terminals
Ideal for Board Stacking applications


Current Rating: 0.5 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 40m ohms max
Dielectric Withstanding: AC 500V
Contact Retention: 200g Min. Per Contact
Insertion Force: 150g Max Per Contact
Extraction Force: 25g Min. Per Contact


Green Options: RoHS Complaint
Contact Plating: Gold
Locating Peg: with or without
Packaging: Tube (w/o Film)
Packaging: Film & Reel
Packaging: Reel(w/o Film)
Packaging: MPad & Reel
Packaging: MPad & Tube
Mount Type: Straight

Technical Sheets

Download PDF
Download CAD
