Micro Pitch Interconnect Socket - MPVR1

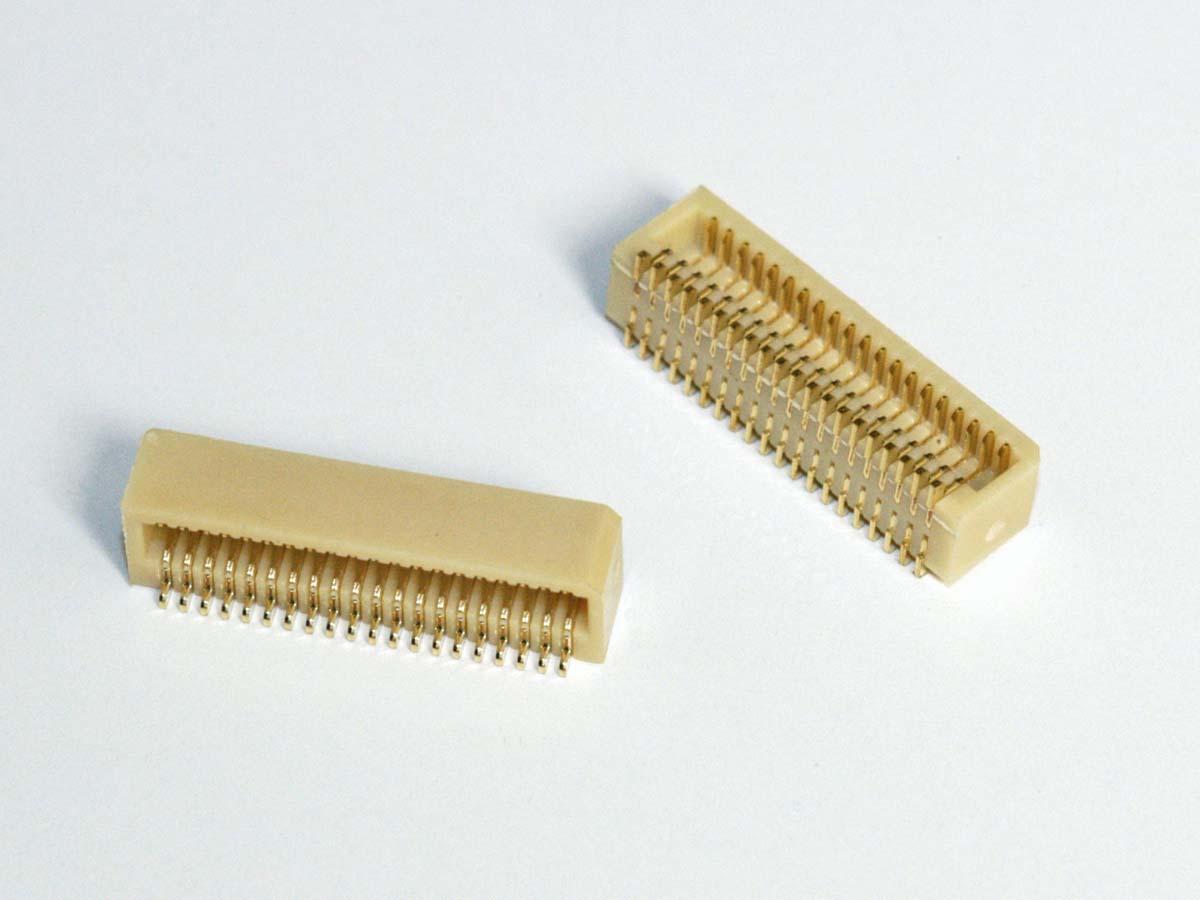

Micro Socket RA – MPVR1

Micro Socket RA – MPVR1

SKU: MPVR1 Categories: , Tag:

Micro Socket RA 0.8mm – Micro Socket RA

Application & Features

Parallel Board Stacking
Mobile Devices
Home Automation
Measuring Devices
Electrical Devices
Handheld Terminals

Specifications

Flame Rating: UL 94V-0
Current Rating: 0.5 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 70m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +85° C
Contact Material: Phosphor Bronze
Insulator Material: High Temperature Thermoplastic
Finish: Gold over Nickel

Options

Green Options: RoHS Complaint
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Locating Peg: with or without
Color: White
Packaging: Tube
Packaging: Reel(w/o Film)
Mount Type: Right Angle

Technical Sheets

Download PDF
Download CAD
