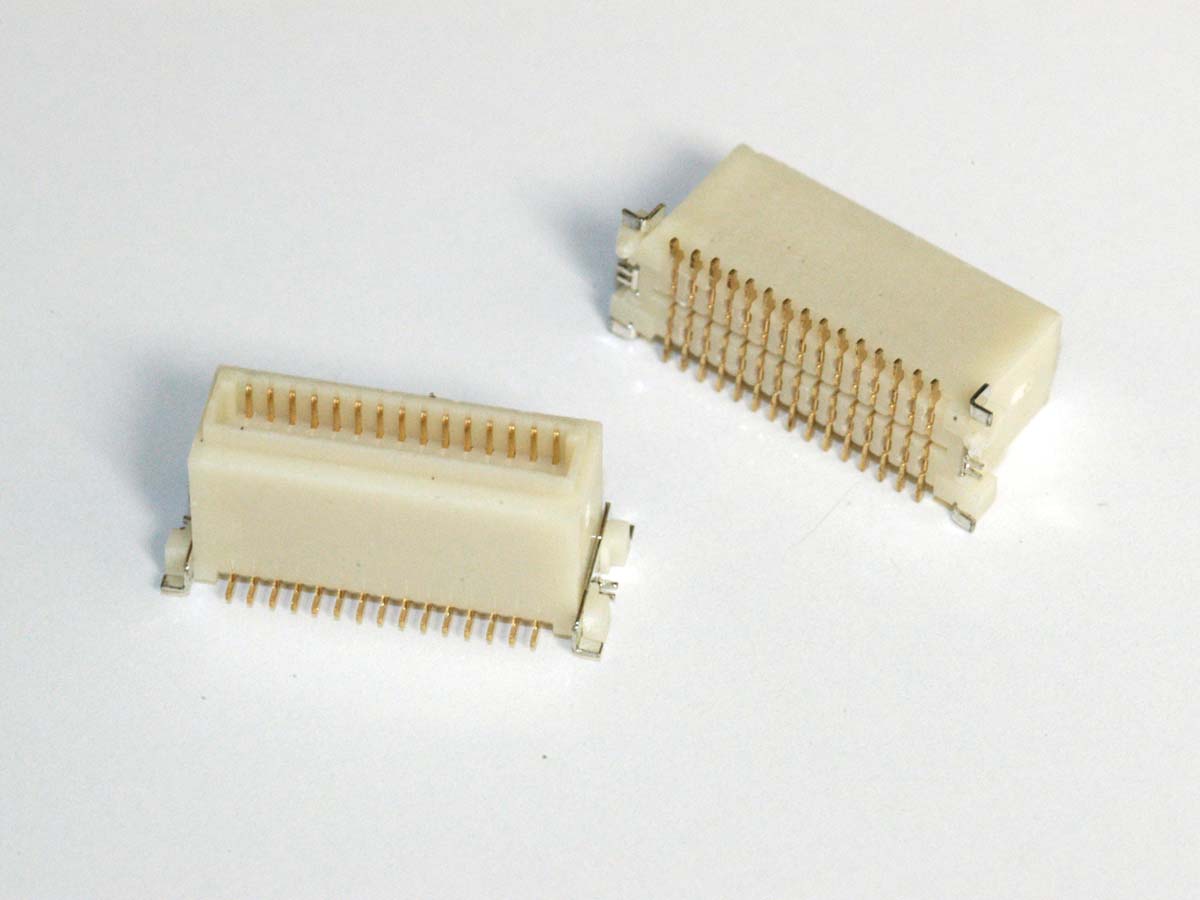

Micro Pitch Interconnect Socket – MPHS1

Micro Pitch Interconnect Socket – MPHS1

SKU: MPHS1 Categories: , Tag:

Micro Pitch Interconnect Socket 0.8mm – Micro Pitch Interconnect Socket

Application & Features

Parallel Board Stacking
Mobile Devices
Home Automation
Measuring Devices
Electrical Devices
Handheld Terminals

Specifications

Flame Rating: UL 94V-0
Current Rating: 0.5 Amp
Contact Resistance: 40m ohms max
Dielectric Withstanding: AC 500V
Contact Retention: 200g Min. Per Contact
Extraction Force: 25g Min. Per Contact
Insertion Force: 150g Max Per Contact

Options

Green Options: RoHS2 Directive 2011/65/EU
Gender: Female
Contact Plating: Selective Tin & Gold
Locating Peg: with or without
Packaging: Tube (w/o Film)
Packaging: Reel(w/o Film)
Packaging: Film & Reel
Packaging: MPad & Reel
Material Compliance: With Halogen
Material Compliance: Halogen Free
Mount Type: Straight
Solder Type: Surface Mount (SMT)

Technical Sheets

Download PDF
Download CAD
