Solid connector solutions for the ever-changing electronic Industry.

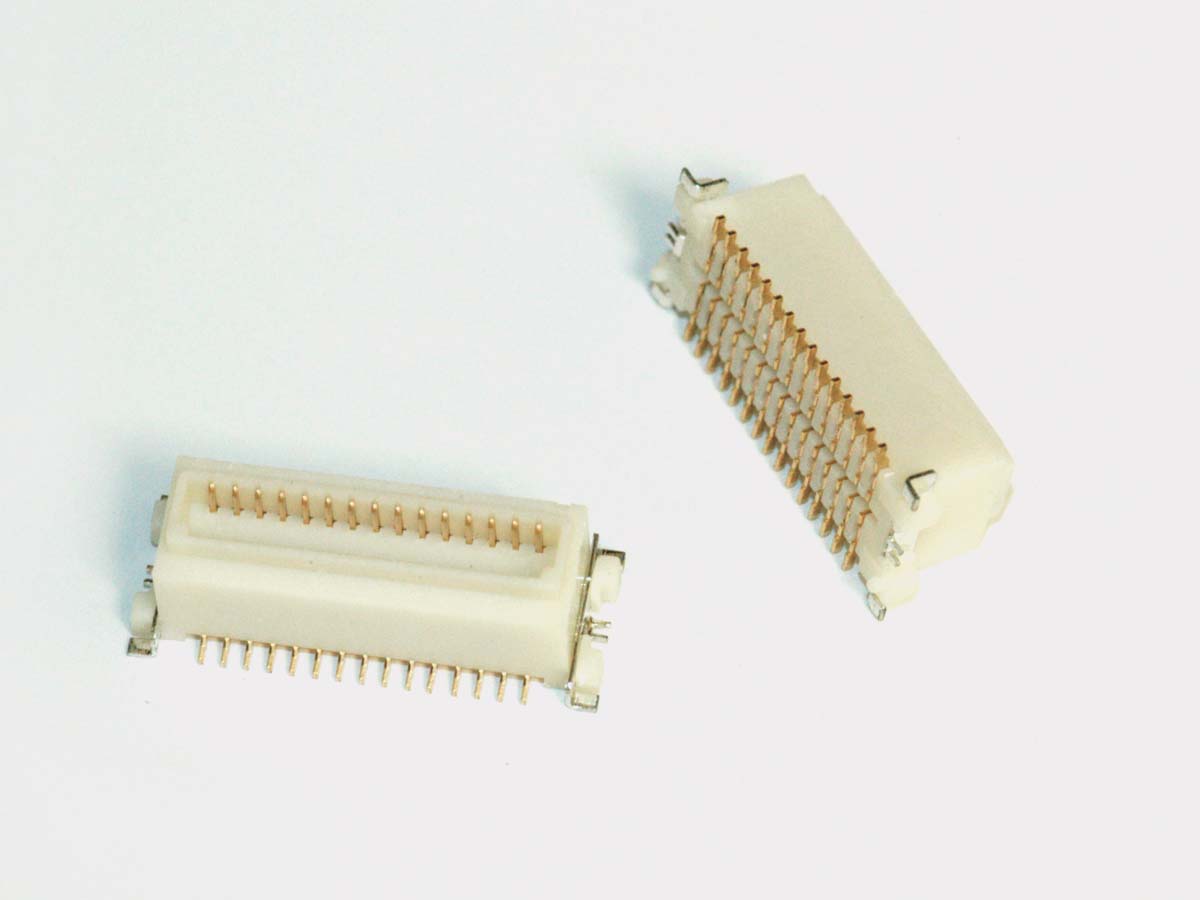

Micro Pitch Interconnect – MPI8

Micro Pitch Interconnect – MPI8

SKU: MPI8 Categories: , Tag:

Micro Pitch Interconnect 0.8mm – Micro Pitch Interconnect

Application & Features

Parallel Board Stacking
Mobile Devices
Home Automation
Measuring Devices
Electrical Devices
Handheld Terminals


Flame Rating: UL 94V-0
Current Rating: 0.3 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 70m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Insertion Force: 150g Max Per Contact
Extraction Force: 25g Min. Per Contact
Durability: 30 Cycles Min.
Contact Retention: 200g Min. Per Contact


Green Options: RoHS2 Directive 2011/65/EU
Contact Plating: Gold Flash – 30u
Locating Peg: with or without
Packaging: Tube (w/o Film)
Packaging: Reel(w/o Film)
Packaging: Film & Reel
Packaging: Film + Tube
Packaging: MPad & Reel
Material Compliance: With Halogen
Material Compliance: Halogen Free
Mount Type: Straight
Solder Type: Surface Mount (SMT)

Technical Sheets

Download PDF
Download CAD
