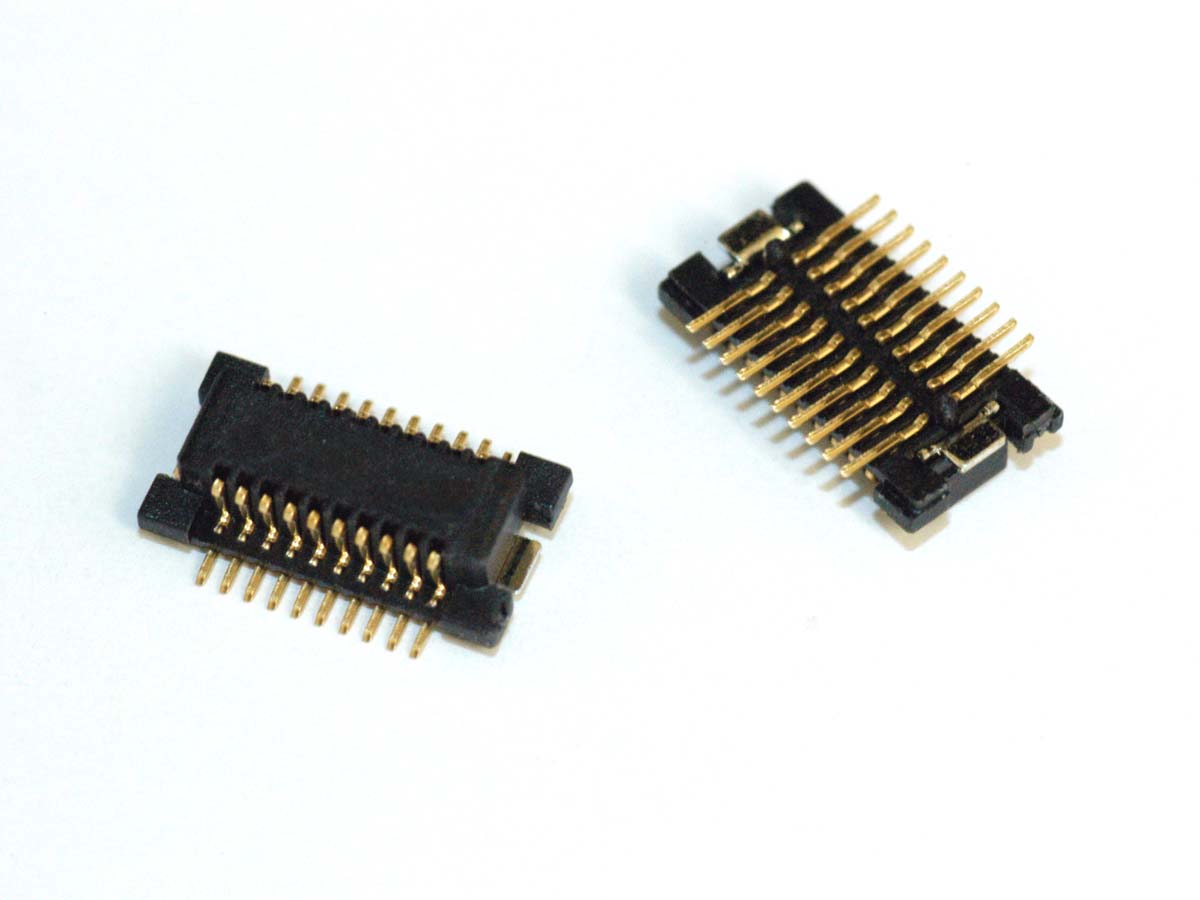

Micro Pitch Interconnect Plug – MPES4

Micro Pitch Interconnect Plug – MPES4

SKU: MPES4 Categories: , Tag:

Micro Pitch Interconnect Plug 0.5mm – Micro Pitch Interconnect Plug

Application & Features

Parallel Board Stacking
Mobile Devices
Home Automation
Measuring Devices
Electrical Devices
Handheld Terminals

Specifications

Flame Rating: UL 94V-0
Current Rating: 0.5 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 40m ohms max
Dielectric Withstanding: AC 500V
Contact Retention: 200g Min. Per Contact

Options

Green Options: RoHS2 Directive 2011/65/EU
Gender: Male
Contact Plating: Tin, Gold Flash – 30u
Locating Peg: with or without
Packaging: Tube (w/o Film)
Packaging: Reel(w/o Film)
Packaging: Film & Reel
Packaging: MPad & Reel
Material Compliance: With Halogen
Material Compliance: Halogen Free
Solder Type: Surface Mount (SMT)

Technical Sheets

Download PDF
Download CAD
