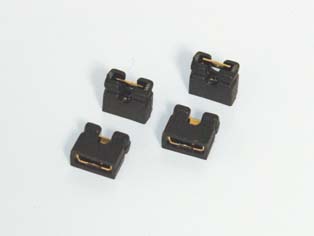

Shunt Open Top Jumper – MJP

Shunt Open Top Jumper – MJP

SKU: MJP Categories: , Tags: ,

Shunt Open Top Jumper Dual Row 2mm – Shunt Open Top Jumper

Application & Features

Automation Control
Electrical Connection between two points in a circuit
Modify a circuit or to diagnose problems in a circuit
Gaming Systems
Industrial Systems
PCB Motherboard

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 1000 Megohm min
Contact Resistance: 30m ohms max
Dielectric Withstanding: AC 650V
Insulator Material: Thermoplastic, PBT, 30% Glass Filled
Contact Material: Brass or Phosphor Bronze
Contact Plating : 10u”, 50u” Gold Plated to Gold Flash

Options

Green Options: RoHS Complaint
Contact Plating: Selective Gold

Technical Sheets

Download PDF
Download CAD
