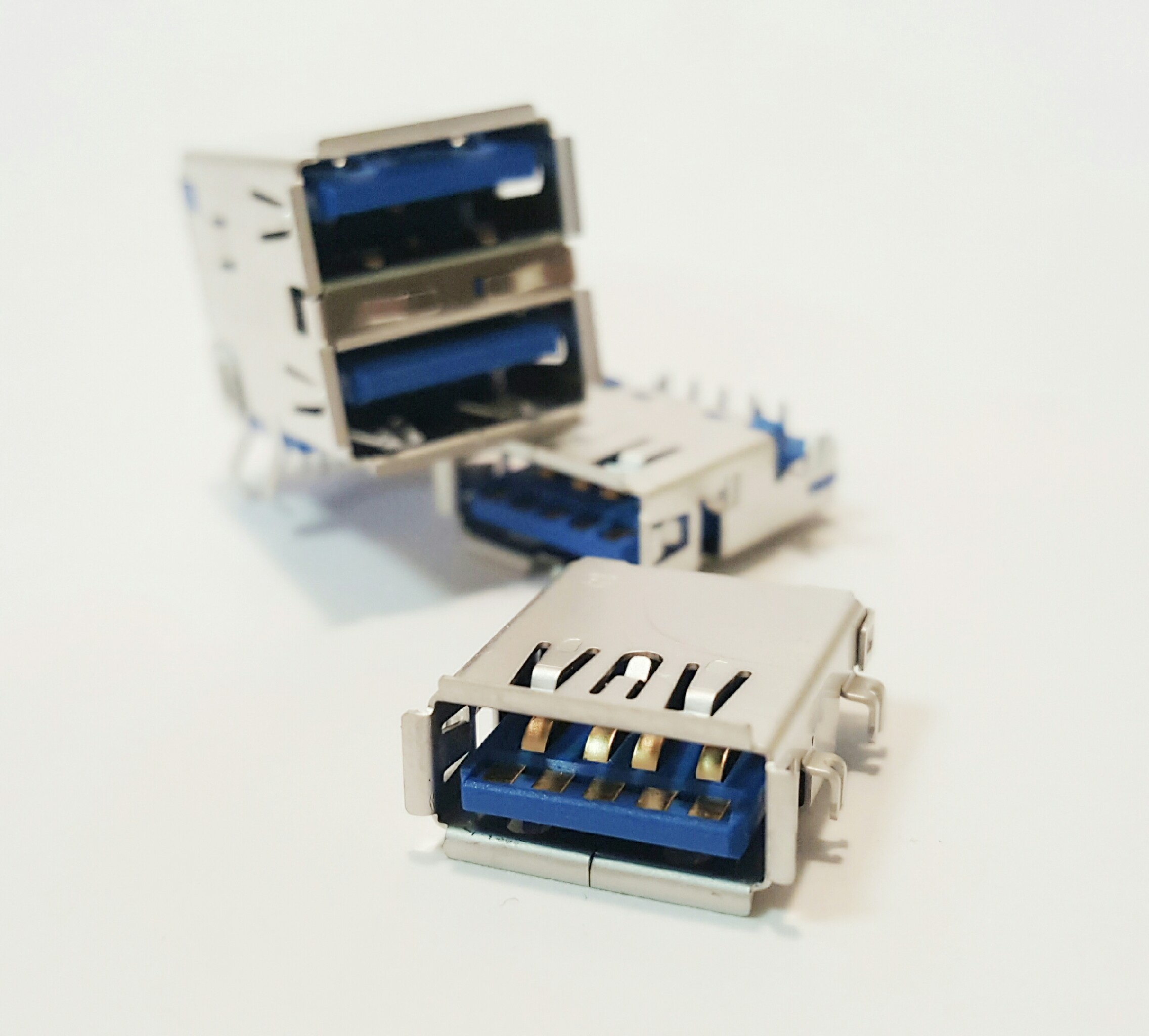

USB Type A 3.0 Single, Dual, Standard and Reverse – BPA

USB Type A 3.0 Single, Dual, Standard and Reverse – BPA

SKU: BPA Categories: , Tags: ,

USB Type A 3.0 Single, Dual, Standard and Reverse Single Row 2mm – USB Type A 3.0 Single, Dual, Standard and Reverse

Application & Features

USB 3.0 R/W 5Gbps (10x faster than USB 2.0)
USB 3.1 SuperSpeed bandwidth of 20Gbps
Gaming Systems
Home Automation
Mobile Devices
Networking and Computer Cables

Specifications

Flame Rating: UL 94V-0
Current Rating: 1.8A to VBUS and GND 0.25A to other contacts
Contact Resistance: 30m ohms max for Vbus, 50 m ohms all other pins
Insulator Resistance: 100 Megohms min @ 250VDC
Dielectric Withstanding: AC 100V
Operating Temperature: -20° ~ +85° C
Mating Cycles: 5000
Insulator Material: Thermoplastic
Contact Material: Copper Alloy
Shell Material: Copper Alloy
Underplate: 80u” Nickel
Contact Area Plating: 30u”Pd-Ni+2u”Gold
Solder Tail Plating: 100u”-200u” Matte Tin

Options

Green Options: RoHS2 Directive 2011/65/EU
Type: A Type USB
Mount Type: Right Angle
Contact Plating: Gold Flash – 30u
Packaging: Tape & Reel (T&R)
Color: Blue (Pantone 300C)
Shell Plating: Tin (Matte)
Solder Tails: 100u”-200u” Tin
Color: Blue
Mount Type: Standard or Reverse
Gender: Female
Type : Dual/Single
Options: See PDF/CAD for all details

Technical Sheets

Download Standard PDF
Download Reverse PDF
Download Dual PDF
Download 1.04mm offset PDF
Download Standard CAD
Download Reverse CAD
Download Dual CAD
Download 1.04mm offset CAD
