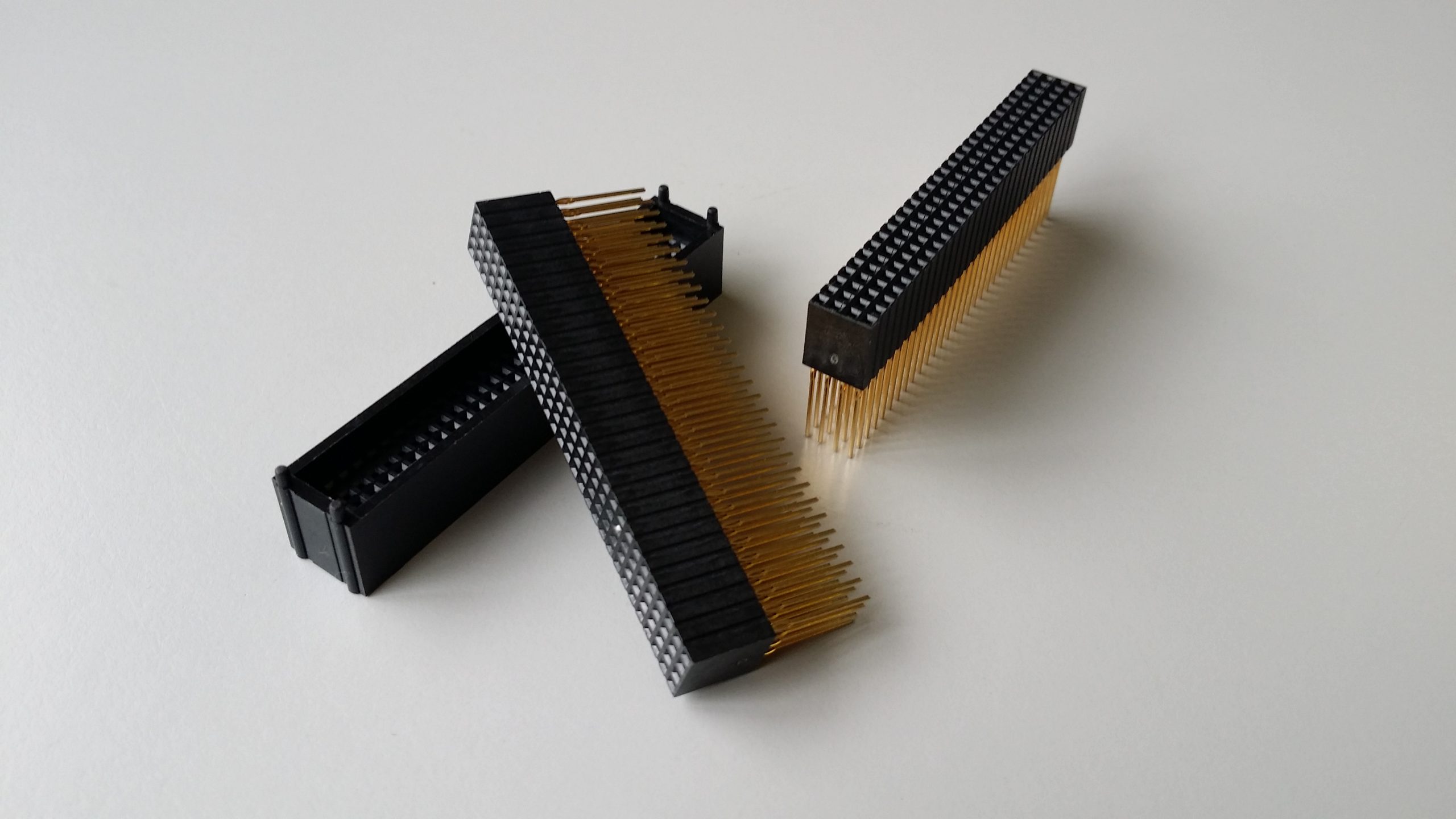

PC104 Plus Press-Fit Type 120p, Stacking – CPQL

PC104 Plus Press-Fit Type 120p, Stacking – CPQL

SKU: CPQL Categories: , , Tags: ,

PC104 Plus Press-Fit Type 120p, Stacking Quad Row 2mm – PC104 Plus Press-Fit Type 120p, Stacking

Application & Features

Industry Standard
Ideal for board stacking applications
Motor & Power Controls
Automation Systems
High Mating Cycles


Flame Rating: UL 94V-0
Current Rating: 2 Amps
Insulator Resistance: 1000 Megohm min
Dielectric Withstanding: AC 1000V
Contact Resistance: 30m ohms max
Operating Temperature: -25° ~ +85° C
Contact Material: Phosphor Bronze
Insulator Material: Nylon 9T


Green Options: RoHS2 Directive 2011/65/EU
Mount Type: Press-Fit
Contact Plating: Gold Flash – 30u
Gender: Female
Mount Type: Straight
Color: Black

Technical Sheets

Download PDF
Download CAD
