Solid connector solutions for the ever-changing electronic Industry.

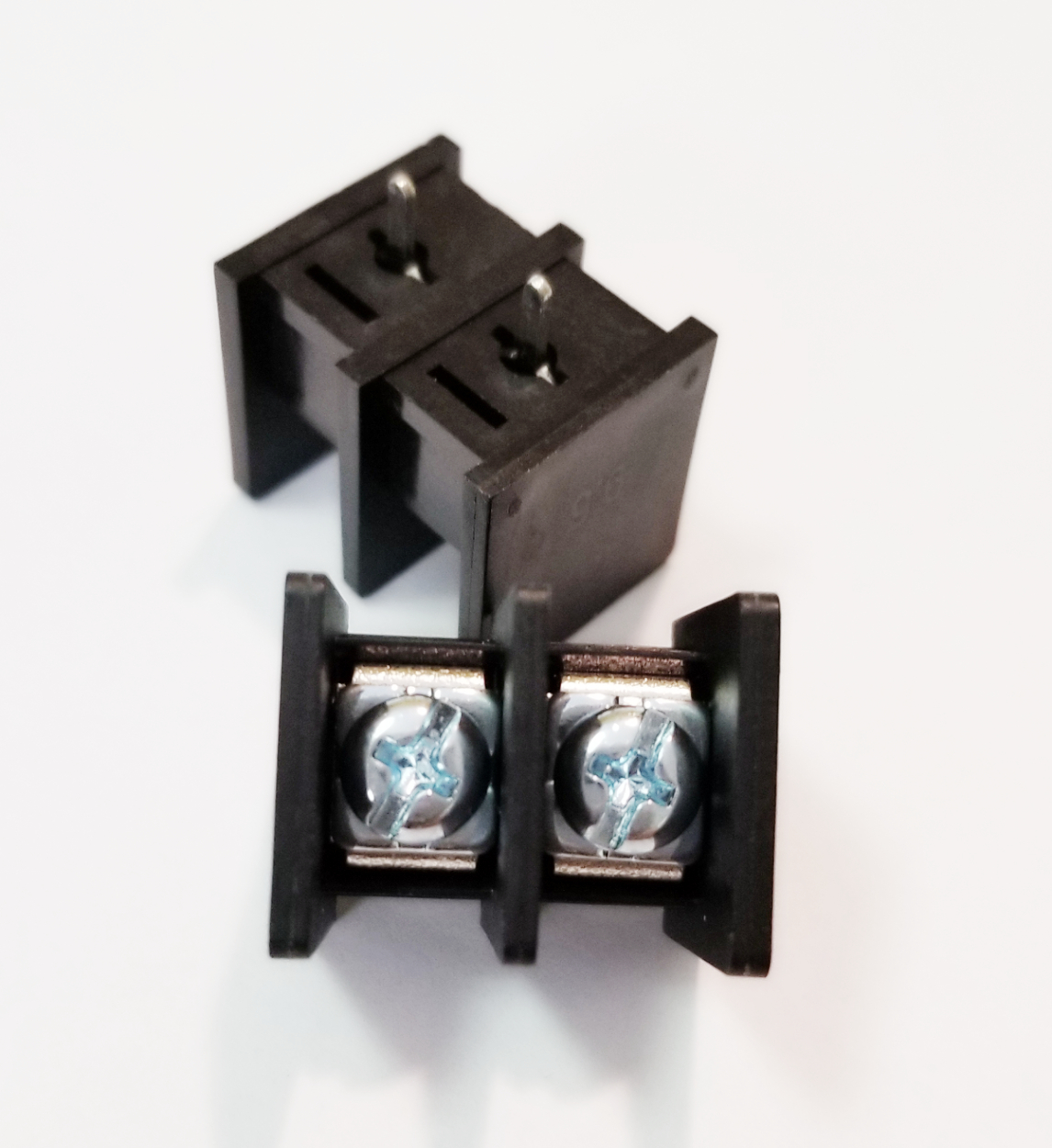

BTS-511

– BTS-511

SKU: BTS-511 Categories: , Tag:

9.5mm –

Specifications

Voltage Rating: 300V AC
Current Rating: 30 Amps
Insulator Resistance: 1000 Megohm min. at 500V DC
Operating Temperature: -40° ~ +115° C
Torque: 8.8 in-lb, M3.5
Wire Range: 10-22 AWG
Insulator Material: Thermoplastic
Terminal: Brass, 0.8t Tin Plated
Termianl Screw: Steel
Safety Approval: cRUusGreen Options: RoHS Complaint
Color: Black
Body Type: W/ Cover

Technical Sheets

Download PDF
Download CAD
